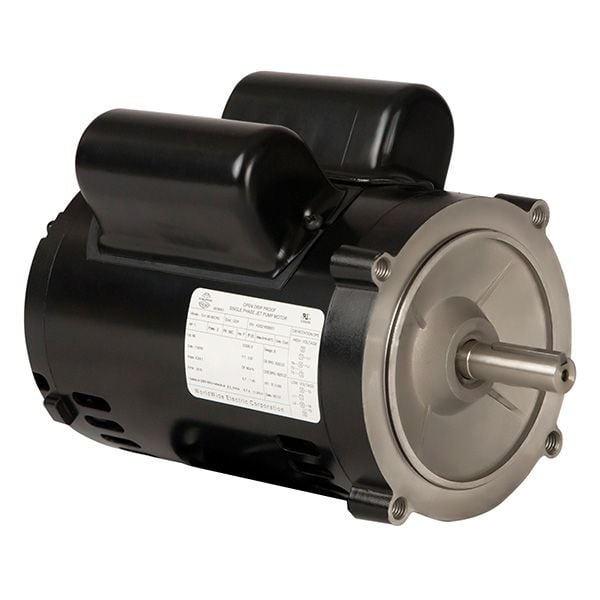

OJ12-36-56CRD — Jet Pump Motor


Price:
$ 297.01

Description

OJ12-36-56CRD — Jet Pump Motor

The OJ12-36-56CRD is a 0.5 hp, 3600 rpm, 1-phase, 115/230v, 56c frame, odp jet pump motor for close-coupled centrifugal pumps. ODP enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number OJ12-36-56CRD
Horsepower (HP) 0.5
Speed (RPM) 3600
Phase Single-Phase
Voltage 115/230
NEMA Frame 56C
Enclosure ODP
Service Factor 1.15
Full-Load Efficiency (%) 72.4
Full-Load Amps 2.4
Insulation Class Class F
Mounting C-Face Round Body (Footless)
Ingress Protection IP23
Weight (lbs) 23
Warranty Two Year

Applications

  • Close-coupled centrifugal pumps
  • Booster, transfer, and circulation pumps
  • Irrigation and water-treatment skids
  • OEM pump packages

Documentation & Downloads

Frequently Asked Questions

What is the OJ12-36-56CRD used for?

The OJ12-36-56CRD is a 0.5 hp, 3600 rpm, 1-phase, 115/230v, 56c frame, odp jet pump motor used for close-coupled centrifugal pumps and similar loads.

What frame is the OJ12-36-56CRD?

The OJ12-36-56CRD uses a NEMA 56C frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the OJ12-36-56CRD run on?

The OJ12-36-56CRD is rated 115/230V, 1-Phase at 60 Hz. Verify supply voltage and connection against the motor nameplate.

How fast does the OJ12-36-56CRD ship?

Most in-stock units of the OJ12-36-56CRD ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on OJ12-36-56CRD?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
