OW100-9-447T — Oil Well Pump Motor


Price:
$ 13,196.56

Description

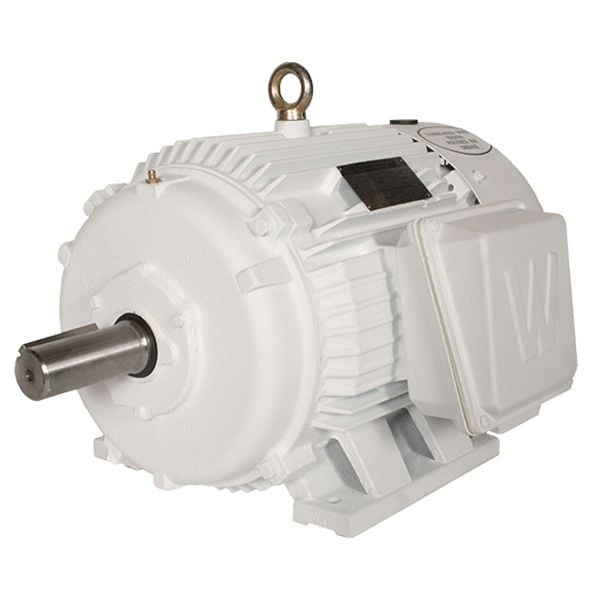

OW100-9-447T — Oil Well Pump Motor

The OW100-9-447T is a 100 hp, 900 rpm, 3-phase, 230/460/796v, 447t frame, tefc oil well pump motor for close-coupled centrifugal pumps. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number OW100-9-447T
Horsepower (HP) 100
Speed (RPM) 900
Phase Three-Phase
Voltage 230/460/796
Frequency 60/50 HZ*
NEMA Frame 447T
Enclosure TEFC
Service Factor 1.15
Full-Load Efficiency (%) 94.9
Full-Load Amps 130
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Weight (lbs) 1370
Warranty Two Year

Applications

  • Close-coupled centrifugal pumps
  • Booster, transfer, and circulation pumps
  • Irrigation and water-treatment skids
  • OEM pump packages

Documentation & Downloads

Frequently Asked Questions

What is the OW100-9-447T used for?

The OW100-9-447T is a 100 hp, 900 rpm, 3-phase, 230/460/796v, 447t frame, tefc oil well pump motor used for close-coupled centrifugal pumps and similar loads.

What frame is the OW100-9-447T?

The OW100-9-447T uses a NEMA 447T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the OW100-9-447T run on?

The OW100-9-447T is rated 230/460/796V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.

How fast does the OW100-9-447T ship?

Most in-stock units of the OW100-9-447T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on OW100-9-447T?

Most in-stock items ship same-day — call to confirm availability and freight.
