OW50-12-404T — Oil Well Pump Motor


Price:
$ 5,867.36

Description

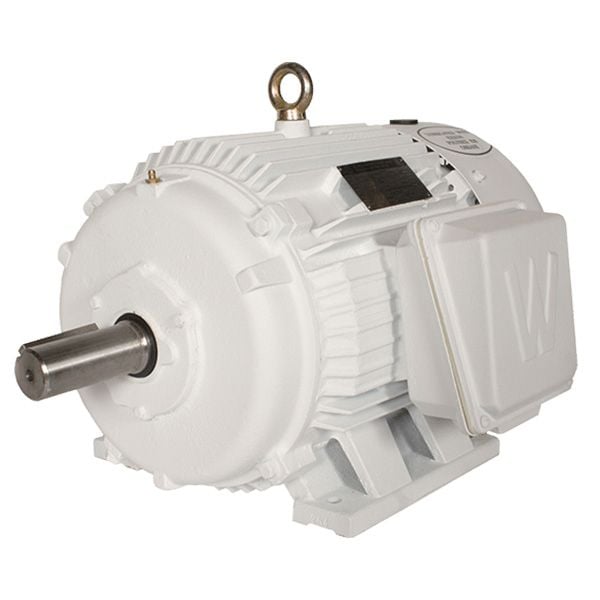

OW50-12-404T — Oil Well Pump Motor

The OW50-12-404T is a 50 hp, 1200 rpm, 3-phase, 230/460/796v, 404t frame, tefc oil well pump motor for close-coupled centrifugal pumps. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number OW50-12-404T
Horsepower (HP) 50
Speed (RPM) 1200
Phase Three-Phase
Voltage 230/460/796
Frequency 60/50 HZ*
NEMA Frame 404T
Enclosure TEFC
Service Factor 1.15
Full-Load Efficiency (%) 91.3
Full-Load Amps 57.8
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Weight (lbs) 957
Warranty Two Year

Applications

  • Close-coupled centrifugal pumps
  • Booster, transfer, and circulation pumps
  • Irrigation and water-treatment skids
  • OEM pump packages

Documentation & Downloads

Frequently Asked Questions

What is the OW50-12-404T used for?

The OW50-12-404T is a 50 hp, 1200 rpm, 3-phase, 230/460/796v, 404t frame, tefc oil well pump motor used for close-coupled centrifugal pumps and similar loads.

What frame is the OW50-12-404T?

The OW50-12-404T uses a NEMA 404T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the OW50-12-404T run on?

The OW50-12-404T is rated 230/460/796V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.

How fast does the OW50-12-404T ship?

Most in-stock units of the OW50-12-404T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on OW50-12-404T?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
