Description

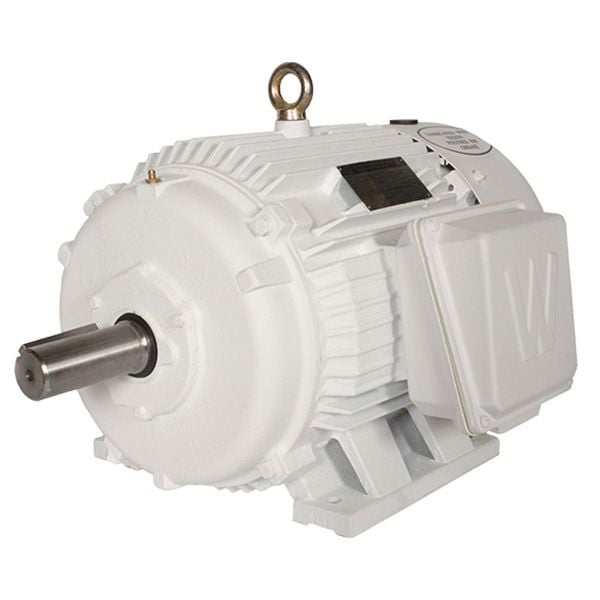

OW60-12-405T — Oil Well Pump Motor
The OW60-12-405T is a 60 hp, 1200 rpm, 3-phase, 230/460/796v, 405t frame, tefc oil well pump motor for close-coupled centrifugal pumps. TEFC enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | OW60-12-405T |
| Horsepower (HP) | 60 |
| Speed (RPM) | 1200 |
| Phase | Three-Phase |
| Voltage | 230/460/796 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 405T |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 82.4 |
| Full-Load Amps | 78 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP55 |
| Weight (lbs) | 1058 |
| Warranty | Two Year |
Applications
- Close-coupled centrifugal pumps
- Booster, transfer, and circulation pumps
- Irrigation and water-treatment skids
- OEM pump packages
Documentation & Downloads
Frequently Asked Questions
What is the OW60-12-405T used for?
The OW60-12-405T is a 60 hp, 1200 rpm, 3-phase, 230/460/796v, 405t frame, tefc oil well pump motor used for close-coupled centrifugal pumps and similar loads.
What frame is the OW60-12-405T?
The OW60-12-405T uses a NEMA 405T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the OW60-12-405T run on?
The OW60-12-405T is rated 230/460/796V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
How fast does the OW60-12-405T ship?
Most in-stock units of the OW60-12-405T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
