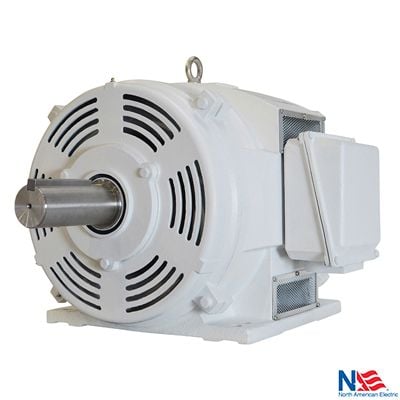

OWP324T-25-6-ODP - Oil Well Pump Motor
The OWP324T-25-6-ODP is a 25 hp, 1200 rpm, 3-phase, 230/460/796v, 324t frame, odp oil well pump motor for close-coupled centrifugal pumps. ODP enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | OWP324T-25-6-ODP |
| Horsepower (HP) | 25 |
| Speed (RPM) | 1200 |
| Phase | Three-Phase |
| Voltage | 230/460/796 |
| Frequency | 60 HZ |
| NEMA Frame | 324T |
| Enclosure | ODP |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP23 |
| Warranty | Two Year |
Applications
- Close-coupled centrifugal pumps
- Booster, transfer, and circulation pumps
- Irrigation and water-treatment skids
- OEM pump packages
Documentation & Downloads
Frequently Asked Questions
What is the OWP324T-25-6-ODP used for?
The OWP324T-25-6-ODP is a 25 hp, 1200 rpm, 3-phase, 230/460/796v, 324t frame, odp oil well pump motor used for close-coupled centrifugal pumps and similar loads.
What frame is the OWP324T-25-6-ODP?
The OWP324T-25-6-ODP uses a NEMA 324T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the OWP324T-25-6-ODP run on?
The OWP324T-25-6-ODP is rated 230/460/796V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the OWP324T-25-6-ODP ship?
Most in-stock units of the OWP324T-25-6-ODP ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
