OWP326T-30-6-ODP — Oil Well Pump Motor


Price:
$ 2,637.55

Description

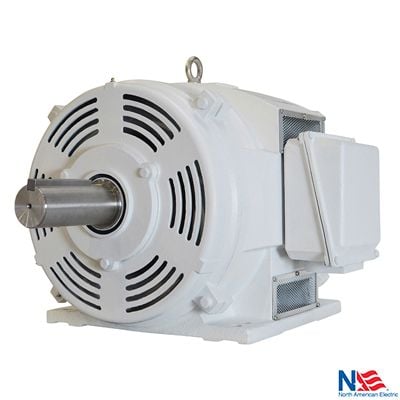

OWP326T-30-6-ODP — Oil Well Pump Motor

The OWP326T-30-6-ODP is a 30 hp, 1200 rpm, 3-phase, 230/460/796v, 326t frame, odp oil well pump motor for close-coupled centrifugal pumps. ODP enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number OWP326T-30-6-ODP
Horsepower (HP) 30
Speed (RPM) 1200
Phase Three-Phase
Voltage 230/460/796
Frequency 60 HZ
NEMA Frame 326T
Enclosure ODP
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP23
Warranty Two Year

Applications

  • Close-coupled centrifugal pumps
  • Booster, transfer, and circulation pumps
  • Irrigation and water-treatment skids
  • OEM pump packages

Documentation & Downloads

Frequently Asked Questions

What is the OWP326T-30-6-ODP used for?

The OWP326T-30-6-ODP is a 30 hp, 1200 rpm, 3-phase, 230/460/796v, 326t frame, odp oil well pump motor used for close-coupled centrifugal pumps and similar loads.

What frame is the OWP326T-30-6-ODP?

The OWP326T-30-6-ODP uses a NEMA 326T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the OWP326T-30-6-ODP run on?

The OWP326T-30-6-ODP is rated 230/460/796V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the OWP326T-30-6-ODP ship?

Most in-stock units of the OWP326T-30-6-ODP ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on OWP326T-30-6-ODP?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
