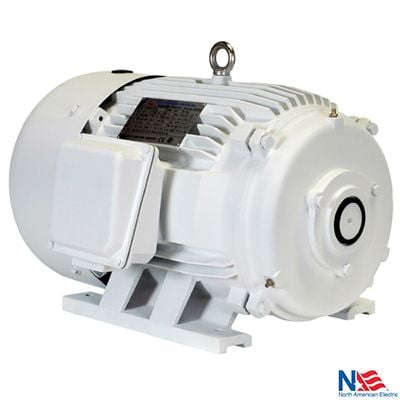

PC324T-40-4 — Rotary Phase Converter Motor


Price:
$ 2,442.72

Description

PC324T-40-4 — Rotary Phase Converter Motor

The PC324T-40-4 is a 40 hp, 1800 rpm, 3-phase, 208-230/460v, 324t frame, tefc rotary phase converter motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number PC324T-40-4
Horsepower (HP) 40
Speed (RPM) 1800
Phase Three-Phase
Voltage 208-230/460
Frequency 60 HZ
NEMA Frame 324T
Enclosure TEFC
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Warranty Two Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the PC324T-40-4 used for?

The PC324T-40-4 is a 40 hp, 1800 rpm, 3-phase, 208-230/460v, 324t frame, tefc rotary phase converter motor used for industrial machinery and oem equipment and similar loads.

What frame is the PC324T-40-4?

The PC324T-40-4 uses a NEMA 324T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the PC324T-40-4 run on?

The PC324T-40-4 is rated 208-230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the PC324T-40-4 ship?

Most in-stock units of the PC324T-40-4 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
