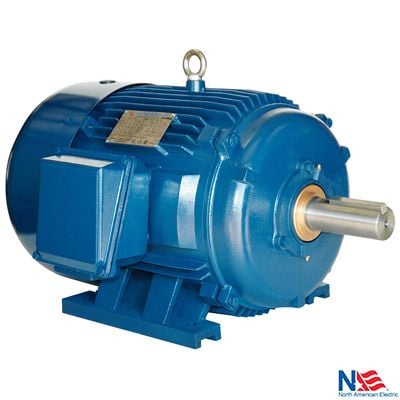

PE143T-1-4C - Crusher Duty Motor
The PE143T-1-4C is a 1 hp, 1800 rpm, 3-phase, 208-230/460v, 143t frame, tefc crusher duty motor for rock crushers and aggregate equipment. TEFC enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | PE143T-1-4C |
| Horsepower (HP) | 1 |
| Speed (RPM) | 1800 |
| Phase | Three-Phase |
| Voltage | 208-230/460 |
| Frequency | 60 HZ |
| NEMA Frame | 143T |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP55 |
| Weight (lbs) | 14 |
| Warranty | Three Year |
Applications
- Rock crushers and aggregate equipment
- Shredders and grinders
- High-inertia, high-shock loads
- Mining and quarry drives
Documentation & Downloads
Frequently Asked Questions
What is the PE143T-1-4C used for?
The PE143T-1-4C is a 1 hp, 1800 rpm, 3-phase, 208-230/460v, 143t frame, tefc crusher duty motor used for rock crushers and aggregate equipment and similar loads.
What frame is the PE143T-1-4C?
The PE143T-1-4C uses a NEMA 143T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the PE143T-1-4C run on?
The PE143T-1-4C is rated 208-230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the PE143T-1-4C ship?
Most in-stock units of the PE143T-1-4C ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
