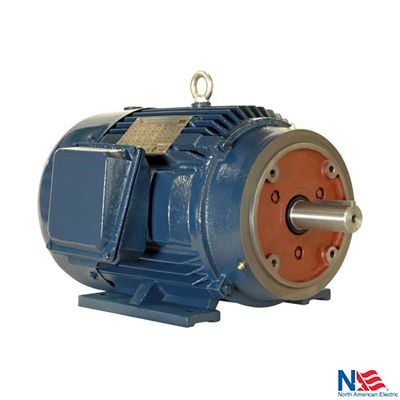

PE182TC-3-4 — Severe Duty Cast Iron Motor


Price:
$ 530.76

Description

PE182TC-3-4 — Severe Duty Cast Iron Motor

The PE182TC-3-4 is a 3 hp, 1800 rpm, 3-phase, 230/460v, 182tc frame, tefc severe duty cast iron motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number PE182TC-3-4
Horsepower (HP) 3
Speed (RPM) 1800
Phase Three-Phase
Voltage 230/460
Frequency 60 HZ
NEMA Frame 182TC
Enclosure TEFC
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the PE182TC-3-4 used for?

The PE182TC-3-4 is a 3 hp, 1800 rpm, 3-phase, 230/460v, 182tc frame, tefc severe duty cast iron motor used for industrial machinery and oem equipment and similar loads.

What frame is the PE182TC-3-4?

The PE182TC-3-4 uses a NEMA 182TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the PE182TC-3-4 run on?

The PE182TC-3-4 is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the PE182TC-3-4 ship?

Most in-stock units of the PE182TC-3-4 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on PE182TC-3-4?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
