PE256JP-20-4 — Close-coupled Pump Motor


Price:
$ 1,937.80

Description

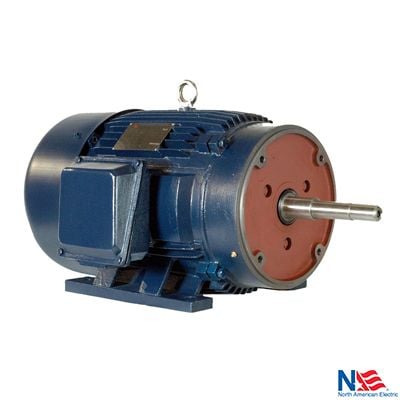

PE256JP-20-4 — Close-coupled Pump Motor

The PE256JP-20-4 is a 20 hp, 1800 rpm, 3-phase, 230/460v, 256jp frame, tefc close-coupled pump motor for close-coupled centrifugal pumps. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number PE256JP-20-4
Horsepower (HP) 20
Speed (RPM) 1800
Phase Three-Phase
Voltage 230/460
Frequency 60 HZ
NEMA Frame 256JP
Enclosure TEFC
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Warranty Two Year

Applications

  • Close-coupled centrifugal pumps
  • Booster, transfer, and circulation pumps
  • Irrigation and water-treatment skids
  • OEM pump packages

Documentation & Downloads

Frequently Asked Questions

What is the PE256JP-20-4 used for?

The PE256JP-20-4 is a 20 hp, 1800 rpm, 3-phase, 230/460v, 256jp frame, tefc close-coupled pump motor used for close-coupled centrifugal pumps and similar loads.

What frame is the PE256JP-20-4?

The PE256JP-20-4 uses a NEMA 256JP frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the PE256JP-20-4 run on?

The PE256JP-20-4 is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the PE256JP-20-4 ship?

Most in-stock units of the PE256JP-20-4 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
