Description

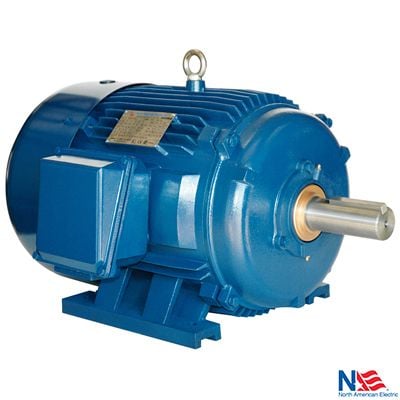

PE284T-15-6C — Crusher Duty Motor
The PE284T-15-6C is a 15 hp, 1200 rpm, 3-phase, 208-230/460v, 284t frame, tefc crusher duty motor for rock crushers and aggregate equipment. TEFC enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | PE284T-15-6C |
| Horsepower (HP) | 15 |
| Speed (RPM) | 1200 |
| Phase | Three-Phase |
| Voltage | 208-230/460 |
| Frequency | 60 HZ |
| NEMA Frame | 284T |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP55 |
| Weight (lbs) | 27 |
| Warranty | Three Year |
Applications
- Rock crushers and aggregate equipment
- Shredders and grinders
- High-inertia, high-shock loads
- Mining and quarry drives
Documentation & Downloads
Frequently Asked Questions
What is the PE284T-15-6C used for?
The PE284T-15-6C is a 15 hp, 1200 rpm, 3-phase, 208-230/460v, 284t frame, tefc crusher duty motor used for rock crushers and aggregate equipment and similar loads.
What frame is the PE284T-15-6C?
The PE284T-15-6C uses a NEMA 284T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the PE284T-15-6C run on?
The PE284T-15-6C is rated 208-230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the PE284T-15-6C ship?
Most in-stock units of the PE284T-15-6C ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Helpful guides: NEMA frame size chart · How to read a motor nameplate
Need a quote on PE284T-15-6C?
Most in-stock items ship same-day — call to confirm availability and freight.
