PE284T-25-2 — Severe Duty Cast Iron Motor


Price:
$ 2,133.20

Description

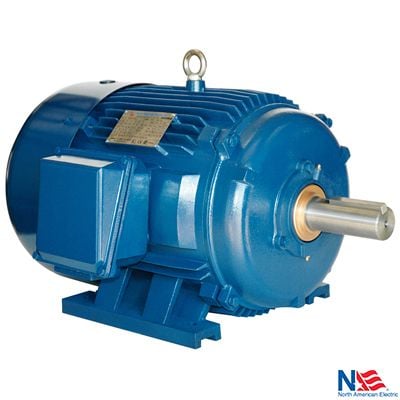

PE284T-25-2 — Severe Duty Cast Iron Motor

The PE284T-25-2 is a 25 hp, 3600 rpm, 3-phase, 230/460v, 284t frame, tefc severe duty cast iron motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number PE284T-25-2
Horsepower (HP) 25
Speed (RPM) 3600
Phase Three-Phase
Voltage 230/460
Frequency 60 HZ
NEMA Frame 284T
Enclosure TEFC
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the PE284T-25-2 used for?

The PE284T-25-2 is a 25 hp, 3600 rpm, 3-phase, 230/460v, 284t frame, tefc severe duty cast iron motor used for industrial machinery and oem equipment and similar loads.

What frame is the PE284T-25-2?

The PE284T-25-2 uses a NEMA 284T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the PE284T-25-2 run on?

The PE284T-25-2 is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the PE284T-25-2 ship?

Most in-stock units of the PE284T-25-2 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on PE284T-25-2?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
