Description

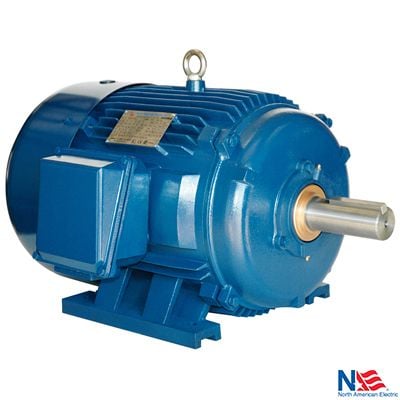

PE365T-75-4-575V — Severe Duty Cast Iron Motor
The PE365T-75-4-575V is a 75 hp, 1800 rpm, 3-phase, 575v, 365t frame, tefc severe duty cast iron motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | PE365T-75-4-575V |
| Horsepower (HP) | 75 |
| Speed (RPM) | 1800 |
| Phase | Three-Phase |
| Voltage | 575 |
| Frequency | 60 HZ |
| NEMA Frame | 365T |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP55 |
| Warranty | Three Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
Frequently Asked Questions
What is the PE365T-75-4-575V used for?
The PE365T-75-4-575V is a 75 hp, 1800 rpm, 3-phase, 575v, 365t frame, tefc severe duty cast iron motor used for industrial machinery and oem equipment and similar loads.
What frame is the PE365T-75-4-575V?
The PE365T-75-4-575V uses a NEMA 365T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the PE365T-75-4-575V run on?
The PE365T-75-4-575V is rated 575V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the PE365T-75-4-575V ship?
Most in-stock units of the PE365T-75-4-575V ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
