Description

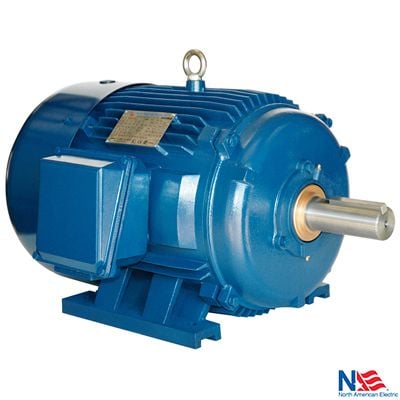

PE405T-60-8C - Crusher Duty Motor
The PE405T-60-8C is a 60 hp, 900 rpm, 3-phase, 208-230/460v, 405t frame, tefc crusher duty motor for rock crushers and aggregate equipment. TEFC enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | PE405T-60-8C |
| Horsepower (HP) | 60 |
| Speed (RPM) | 900 |
| Phase | Three-Phase |
| Voltage | 208-230/460 |
| Frequency | 60 HZ |
| NEMA Frame | 405T |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP55 |
| Warranty | Three Year |
Applications
- Rock crushers and aggregate equipment
- Shredders and grinders
- High-inertia, high-shock loads
- Mining and quarry drives
Documentation & Downloads
Frequently Asked Questions
What is the PE405T-60-8C used for?
The PE405T-60-8C is a 60 hp, 900 rpm, 3-phase, 208-230/460v, 405t frame, tefc crusher duty motor used for rock crushers and aggregate equipment and similar loads.
What frame is the PE405T-60-8C?
The PE405T-60-8C uses a NEMA 405T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the PE405T-60-8C run on?
The PE405T-60-8C is rated 208-230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the PE405T-60-8C ship?
Most in-stock units of the PE405T-60-8C ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Helpful guides: NEMA frame size chart · How to read a motor nameplate
