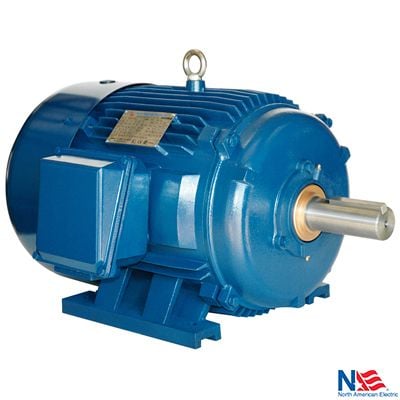

PE444T-125-4-BB — Severe Duty Cast Iron Motor


Price:
$ 8,666.74

Description

PE444T-125-4-BB — Severe Duty Cast Iron Motor

The PE444T-125-4-BB is a 125 hp, 1800 rpm, 3-phase, 460v, 444t frame, tefc severe duty cast iron motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number PE444T-125-4-BB
Horsepower (HP) 125
Speed (RPM) 1800
Phase Three-Phase
Voltage 460
Frequency 60 HZ
NEMA Frame 444T
Enclosure TEFC
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the PE444T-125-4-BB used for?

The PE444T-125-4-BB is a 125 hp, 1800 rpm, 3-phase, 460v, 444t frame, tefc severe duty cast iron motor used for industrial machinery and oem equipment and similar loads.

What frame is the PE444T-125-4-BB?

The PE444T-125-4-BB uses a NEMA 444T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the PE444T-125-4-BB run on?

The PE444T-125-4-BB is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the PE444T-125-4-BB ship?

Most in-stock units of the PE444T-125-4-BB ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on PE444T-125-4-BB?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
