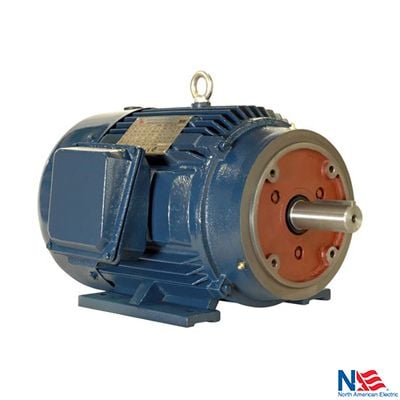

PE444TC-125-4 — Severe Duty Cast Iron Motor


Price:
$ 8,926.71

Description

PE444TC-125-4 — Severe Duty Cast Iron Motor

The PE444TC-125-4 is a 125 hp, 1800 rpm, 3-phase, 460v, 444tc frame, tefc severe duty cast iron motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number PE444TC-125-4
Horsepower (HP) 125
Speed (RPM) 1800
Phase Three-Phase
Voltage 460
Frequency 60 HZ
NEMA Frame 444TC
Enclosure TEFC
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the PE444TC-125-4 used for?

The PE444TC-125-4 is a 125 hp, 1800 rpm, 3-phase, 460v, 444tc frame, tefc severe duty cast iron motor used for industrial machinery and oem equipment and similar loads.

What frame is the PE444TC-125-4?

The PE444TC-125-4 uses a NEMA 444TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the PE444TC-125-4 run on?

The PE444TC-125-4 is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the PE444TC-125-4 ship?

Most in-stock units of the PE444TC-125-4 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
