PE447T-125-8C — Crusher Duty Motor


Price:
$ 13,595.49

Description

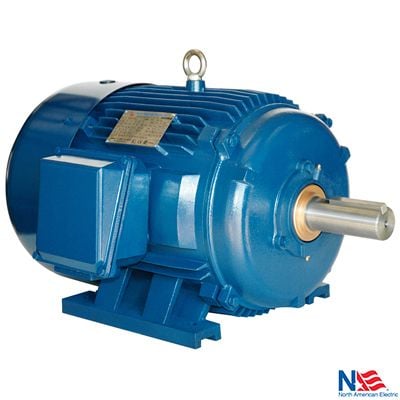

PE447T-125-8C — Crusher Duty Motor

The PE447T-125-8C is a 125 hp, 900 rpm, 3-phase, 460v, 447t frame, tefc crusher duty motor for rock crushers and aggregate equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number PE447T-125-8C
Horsepower (HP) 125
Speed (RPM) 900
Phase Three-Phase
Voltage 460
Frequency 60 HZ
NEMA Frame 447T
Enclosure TEFC
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Warranty Three Year

Applications

  • Rock crushers and aggregate equipment
  • Shredders and grinders
  • High-inertia, high-shock loads
  • Mining and quarry drives

Documentation & Downloads

Frequently Asked Questions

What is the PE447T-125-8C used for?

The PE447T-125-8C is a 125 hp, 900 rpm, 3-phase, 460v, 447t frame, tefc crusher duty motor used for rock crushers and aggregate equipment and similar loads.

What frame is the PE447T-125-8C?

The PE447T-125-8C uses a NEMA 447T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the PE447T-125-8C run on?

The PE447T-125-8C is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the PE447T-125-8C ship?

Most in-stock units of the PE447T-125-8C ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on PE447T-125-8C?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
