PE449TC-300-6C — Crusher Duty Motor


Price:
$ 30,759.18

Description

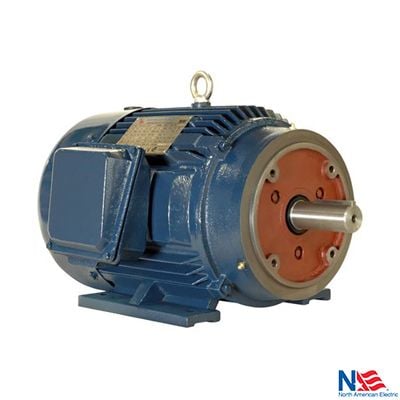

PE449TC-300-6C — Crusher Duty Motor

The PE449TC-300-6C is a 300 hp, 1200 rpm, 3-phase, 460v, 449tc frame, tefc crusher duty motor for rock crushers and aggregate equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number PE449TC-300-6C
Horsepower (HP) 300
Speed (RPM) 1200
Phase Three-Phase
Voltage 460
Frequency 60 HZ
NEMA Frame 449TC
Enclosure TEFC
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Warranty Three Year

Applications

  • Rock crushers and aggregate equipment
  • Shredders and grinders
  • High-inertia, high-shock loads
  • Mining and quarry drives

Documentation & Downloads

Frequently Asked Questions

What is the PE449TC-300-6C used for?

The PE449TC-300-6C is a 300 hp, 1200 rpm, 3-phase, 460v, 449tc frame, tefc crusher duty motor used for rock crushers and aggregate equipment and similar loads.

What frame is the PE449TC-300-6C?

The PE449TC-300-6C uses a NEMA 449TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the PE449TC-300-6C run on?

The PE449TC-300-6C is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the PE449TC-300-6C ship?

Most in-stock units of the PE449TC-300-6C ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
