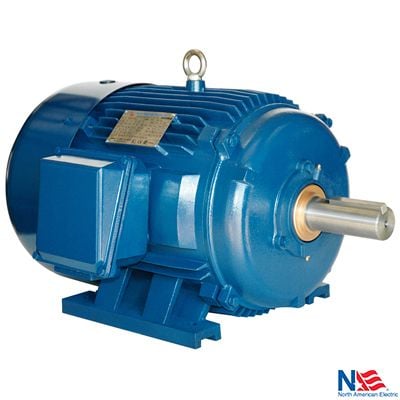

PE449TS-250-4 — Severe Duty Cast Iron Motor


Price:
$ 13,534.41

Description

PE449TS-250-4 — Severe Duty Cast Iron Motor

The PE449TS-250-4 is a 250 hp, 1800 rpm, 3-phase, 460v, 449ts frame, tefc severe duty cast iron motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number PE449TS-250-4
Horsepower (HP) 250
Speed (RPM) 1800
Phase Three-Phase
Voltage 460
Frequency 60 HZ
NEMA Frame 449TS
Enclosure TEFC
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the PE449TS-250-4 used for?

The PE449TS-250-4 is a 250 hp, 1800 rpm, 3-phase, 460v, 449ts frame, tefc severe duty cast iron motor used for industrial machinery and oem equipment and similar loads.

What frame is the PE449TS-250-4?

The PE449TS-250-4 uses a NEMA 449TS frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the PE449TS-250-4 run on?

The PE449TS-250-4 is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the PE449TS-250-4 ship?

Most in-stock units of the PE449TS-250-4 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on PE449TS-250-4?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
