PE587UZ-600-4C — Crusher Duty Motor


Price:
$ 55,902.15

Description

PE587UZ-600-4C — Crusher Duty Motor

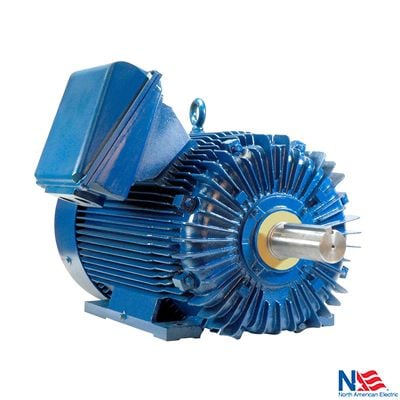

The PE587UZ-600-4C is a 600 hp, 1800 rpm, 3-phase, 460v, 587uz frame, tefc crusher duty motor for rock crushers and aggregate equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number PE587UZ-600-4C
Horsepower (HP) 600
Speed (RPM) 1800
Phase Three-Phase
Voltage 460
Frequency 60 HZ
NEMA Frame 587UZ
Enclosure TEFC
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Warranty Three Year

Applications

  • Rock crushers and aggregate equipment
  • Shredders and grinders
  • High-inertia, high-shock loads
  • Mining and quarry drives

Documentation & Downloads

Frequently Asked Questions

What is the PE587UZ-600-4C used for?

The PE587UZ-600-4C is a 600 hp, 1800 rpm, 3-phase, 460v, 587uz frame, tefc crusher duty motor used for rock crushers and aggregate equipment and similar loads.

What frame is the PE587UZ-600-4C?

The PE587UZ-600-4C uses a NEMA 587UZ frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the PE587UZ-600-4C run on?

The PE587UZ-600-4C is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the PE587UZ-600-4C ship?

Most in-stock units of the PE587UZ-600-4C ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
