Description

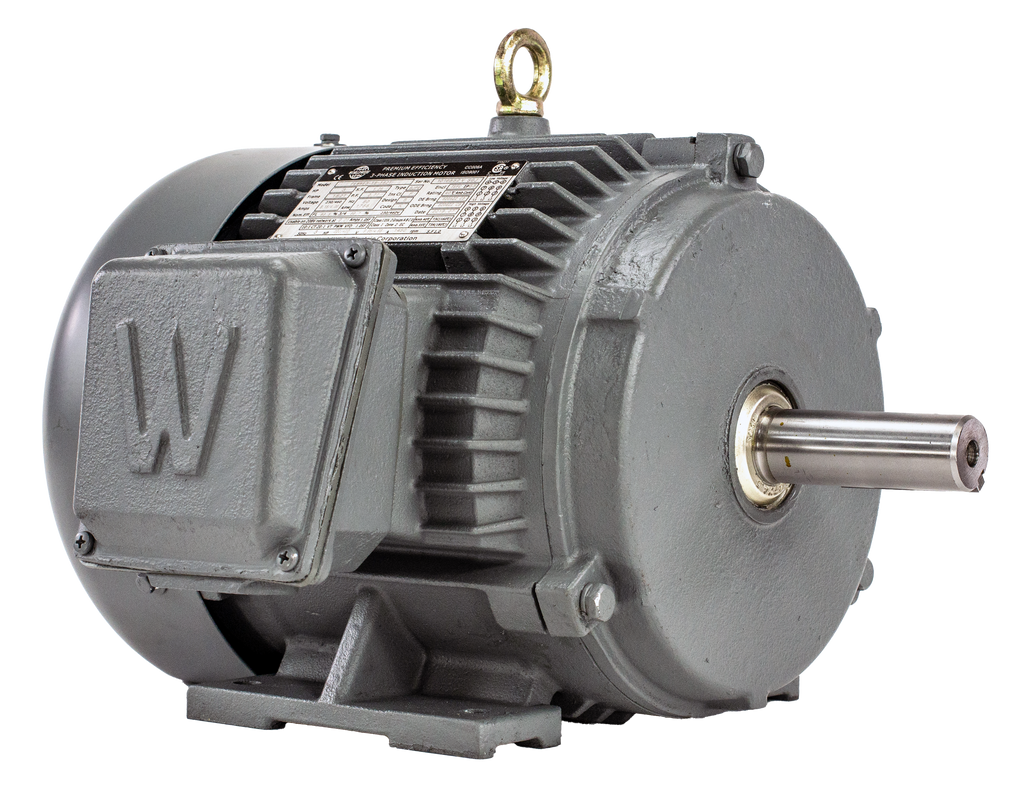

PEWWE10-18-215TZ-GD — Grain Dryer-Centrifugal Fan Motor
The PEWWE10-18-215TZ-GD is a 10 hp, 1800 rpm, 3-phase, 230/460v, 215tz frame, tefc grain dryer-centrifugal fan motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | PEWWE10-18-215TZ-GD |
| Horsepower (HP) | 10 |
| Speed (RPM) | 1800 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60 HZ |
| NEMA Frame | 215TZ |
| Enclosure | TEFC |
| Service Factor | 1.25 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP55 |
| Warranty | Two Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
Frequently Asked Questions
What is the PEWWE10-18-215TZ-GD used for?
The PEWWE10-18-215TZ-GD is a 10 hp, 1800 rpm, 3-phase, 230/460v, 215tz frame, tefc grain dryer-centrifugal fan motor used for industrial machinery and oem equipment and similar loads.
What frame is the PEWWE10-18-215TZ-GD?
The PEWWE10-18-215TZ-GD uses a NEMA 215TZ frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the PEWWE10-18-215TZ-GD run on?
The PEWWE10-18-215TZ-GD is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the PEWWE10-18-215TZ-GD ship?
Most in-stock units of the PEWWE10-18-215TZ-GD ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Need a quote on PEWWE10-18-215TZ-GD?
Most in-stock items ship same-day — call to confirm availability and freight.
