Description

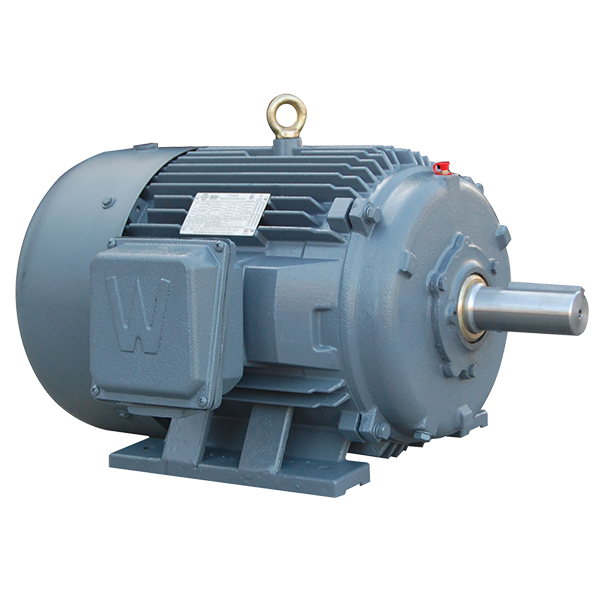

PEWWE125-36-444TS — Premium Efficient Motor
The PEWWE125-36-444TS is a 125 hp, 3600 rpm, 3-phase, 230/460v, 444ts frame, tefc premium efficient motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | PEWWE125-36-444TS |
| Horsepower (HP) | 125 |
| Speed (RPM) | 3600 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 444TS |
| Enclosure | TEFC |
| Service Factor | 1.25 |
| Full-Load Efficiency (%) | 95.0 |
| Full-Load Amps | 137 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP55 |
| Weight (lbs) | 1338 |
| Warranty | Two Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
Frequently Asked Questions
What is the PEWWE125-36-444TS used for?
The PEWWE125-36-444TS is a 125 hp, 3600 rpm, 3-phase, 230/460v, 444ts frame, tefc premium efficient motor used for industrial machinery and oem equipment and similar loads.
What frame is the PEWWE125-36-444TS?
The PEWWE125-36-444TS uses a NEMA 444TS frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the PEWWE125-36-444TS run on?
The PEWWE125-36-444TS is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
How fast does the PEWWE125-36-444TS ship?
Most in-stock units of the PEWWE125-36-444TS ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
