Description

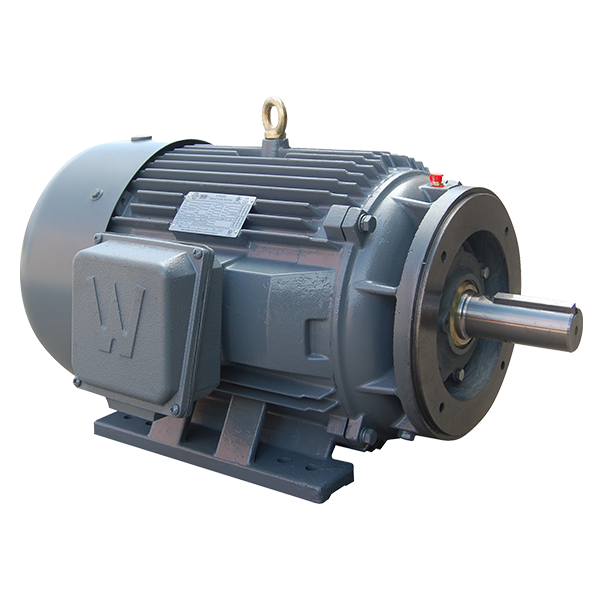

PEWWE15-36-215TC — Premium Efficient Motor
The PEWWE15-36-215TC is a 15 hp, 3600 rpm, 3-phase, 230/460v, 215tc frame, tefc premium efficient motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | PEWWE15-36-215TC |
| Horsepower (HP) | 15 |
| Speed (RPM) | 3600 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 215TC |
| Enclosure | TEFC |
| Service Factor | 1.25 |
| Full-Load Efficiency (%) | 91.8 |
| Full-Load Amps | 17.3 |
| Insulation Class | Class F |
| Mounting | C-Face with Feet |
| Ingress Protection | IP55 |
| Weight (lbs) | 190 |
| Warranty | Two Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
Frequently Asked Questions
What is the PEWWE15-36-215TC used for?
The PEWWE15-36-215TC is a 15 hp, 3600 rpm, 3-phase, 230/460v, 215tc frame, tefc premium efficient motor used for industrial machinery and oem equipment and similar loads.
What frame is the PEWWE15-36-215TC?
The PEWWE15-36-215TC uses a NEMA 215TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the PEWWE15-36-215TC run on?
The PEWWE15-36-215TC is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
How fast does the PEWWE15-36-215TC ship?
Most in-stock units of the PEWWE15-36-215TC ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
