PEWWE15-36-254JP — Close-coupled Pump Motor


Price:
$ 1,945.71

Description

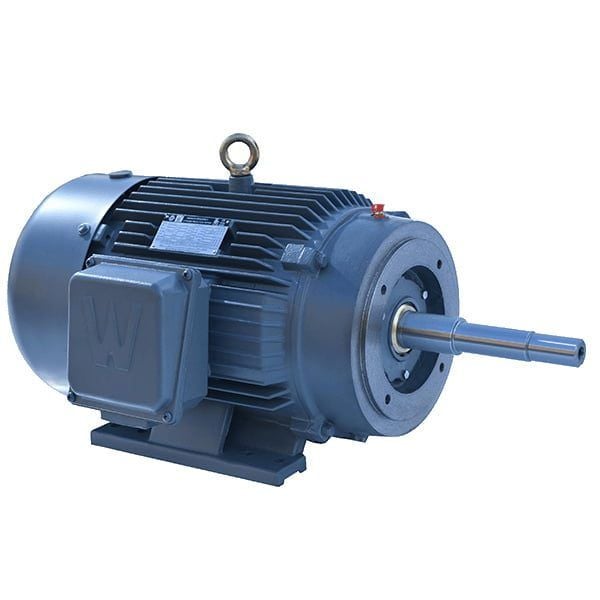

PEWWE15-36-254JP — Close-coupled Pump Motor

The PEWWE15-36-254JP is a 15 hp, 3600 rpm, 3-phase, 230/460v, 254jp frame, tefc close-coupled pump motor for close-coupled centrifugal pumps. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number PEWWE15-36-254JP
Horsepower (HP) 15
Speed (RPM) 3600
Phase Three-Phase
Voltage 230/460
Frequency 60/50 HZ*
NEMA Frame 254JP
Enclosure TEFC
Service Factor 1.15
Full-Load Efficiency (%) 91.0
Full-Load Amps 17.5
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP55
Weight (lbs) 261
Warranty Three Year

Applications

  • Close-coupled centrifugal pumps
  • Booster, transfer, and circulation pumps
  • Irrigation and water-treatment skids
  • OEM pump packages

Documentation & Downloads

Frequently Asked Questions

What is the PEWWE15-36-254JP used for?

The PEWWE15-36-254JP is a 15 hp, 3600 rpm, 3-phase, 230/460v, 254jp frame, tefc close-coupled pump motor used for close-coupled centrifugal pumps and similar loads.

What frame is the PEWWE15-36-254JP?

The PEWWE15-36-254JP uses a NEMA 254JP frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the PEWWE15-36-254JP run on?

The PEWWE15-36-254JP is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.

How fast does the PEWWE15-36-254JP ship?

Most in-stock units of the PEWWE15-36-254JP ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
