PEWWE20-18-575-256TC - Premium Efficient Motor


Price:
$ 1,795.89

Description

PEWWE20-18-575-256TC - Premium Efficient Motor

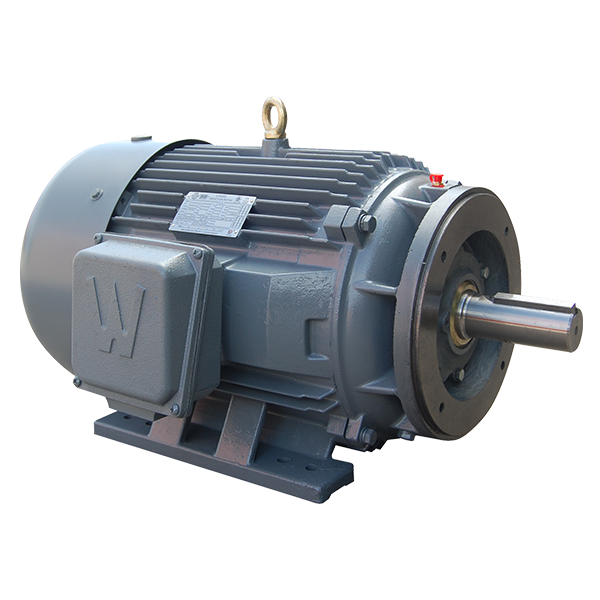

The PEWWE20-18-575-256TC is a 20 hp, 1800 rpm, 3-phase, 575v, 256tc frame, tefc premium efficient motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.

Specifications

Specification Value
Part Number PEWWE20-18-575-256TC
Horsepower (HP) 20
Speed (RPM) 1800
Phase Three-Phase
Voltage 575
Frequency 60 HZ
NEMA Frame 256TC
Enclosure TEFC
Service Factor 1.25
Full-Load Efficiency (%) 93.0
Full-Load Amps 19.0
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP55
Weight (lbs) 297
Warranty Two Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the PEWWE20-18-575-256TC used for?

The PEWWE20-18-575-256TC is a 20 hp, 1800 rpm, 3-phase, 575v, 256tc frame, tefc premium efficient motor used for industrial machinery and oem equipment and similar loads.

What frame is the PEWWE20-18-575-256TC?

The PEWWE20-18-575-256TC uses a NEMA 256TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the PEWWE20-18-575-256TC run on?

The PEWWE20-18-575-256TC is rated 575V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the PEWWE20-18-575-256TC ship?

Most in-stock units of the PEWWE20-18-575-256TC ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Helpful guides: Premium efficiency guide · NEMA frame size chart

Need a quote on PEWWE20-18-575-256TC?

Most in-stock items ship same-day - call to confirm availability and freight.

Call (888) 203-2358
