Description

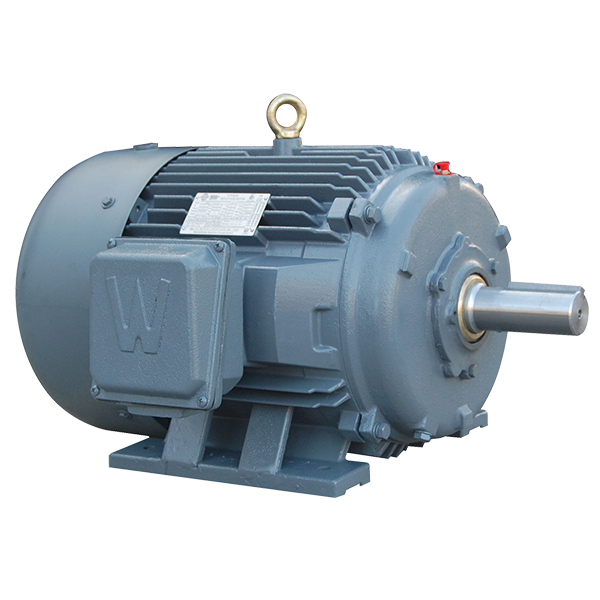

PEWWE200-18-445-7T-IB — Rock Crusher Duty Motor
The PEWWE200-18-445-7T-IB is a 200 hp, 1800 rpm, 3-phase, 230/460v, 445/7t frame, tefc rock crusher duty motor for rock crushers and aggregate equipment. TEFC enclosure, 1.25 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | PEWWE200-18-445-7T-IB |
| Horsepower (HP) | 200 |
| Speed (RPM) | 1800 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 445/7T |
| Enclosure | TEFC |
| Service Factor | 1.25 |
| Full-Load Efficiency (%) | 96.2 |
| Full-Load Amps | 226 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP55 |
| Weight (lbs) | 2033 |
| Warranty | Two Year |
Applications
- Rock crushers and aggregate equipment
- Shredders and grinders
- High-inertia, high-shock loads
- Mining and quarry drives
Documentation & Downloads
Frequently Asked Questions
What is the PEWWE200-18-445-7T-IB used for?
The PEWWE200-18-445-7T-IB is a 200 hp, 1800 rpm, 3-phase, 230/460v, 445/7t frame, tefc rock crusher duty motor used for rock crushers and aggregate equipment and similar loads.
What frame is the PEWWE200-18-445-7T-IB?
The PEWWE200-18-445-7T-IB uses a NEMA 445/7T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the PEWWE200-18-445-7T-IB run on?
The PEWWE200-18-445-7T-IB is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
How fast does the PEWWE200-18-445-7T-IB ship?
Most in-stock units of the PEWWE200-18-445-7T-IB ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Need a quote on PEWWE200-18-445-7T-IB?
Most in-stock items ship same-day — call to confirm availability and freight.
