Description

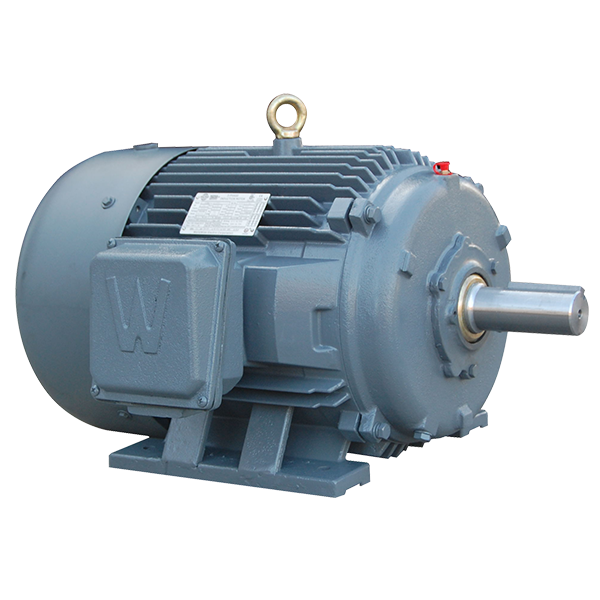

PEWWE30-9-364T — Premium Efficient Motor
The PEWWE30-9-364T is a 30 hp, 900 rpm, 3-phase, 230/460v, 364t frame, tefc premium efficient motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | PEWWE30-9-364T |
| Horsepower (HP) | 30 |
| Speed (RPM) | 900 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 364T |
| Enclosure | TEFC |
| Service Factor | 1.25 |
| Full-Load Efficiency (%) | 91.7 |
| Full-Load Amps | 40.8 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP55 |
| Weight (lbs) | 731 |
| Warranty | Two Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
Frequently Asked Questions
What is the PEWWE30-9-364T used for?
The PEWWE30-9-364T is a 30 hp, 900 rpm, 3-phase, 230/460v, 364t frame, tefc premium efficient motor used for industrial machinery and oem equipment and similar loads.
What frame is the PEWWE30-9-364T?
The PEWWE30-9-364T uses a NEMA 364T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the PEWWE30-9-364T run on?
The PEWWE30-9-364T is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
How fast does the PEWWE30-9-364T ship?
Most in-stock units of the PEWWE30-9-364T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
