PEWWE40-36-286JP — Close-coupled Pump Motor


Price:
$ 3,621.87

Description

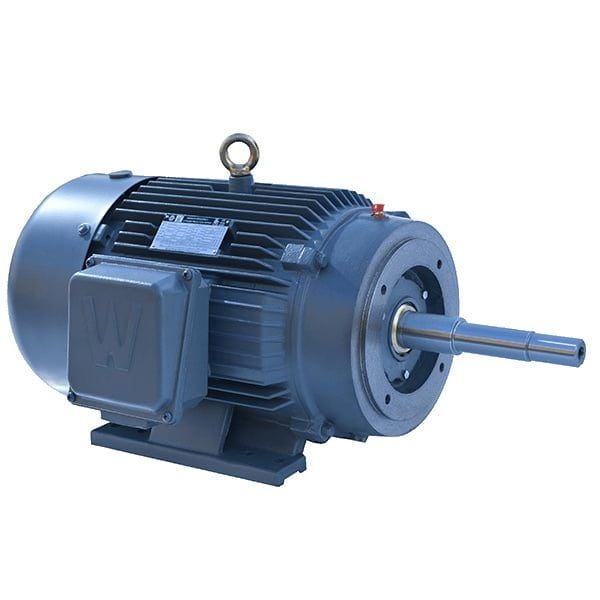

PEWWE40-36-286JP — Close-coupled Pump Motor

The PEWWE40-36-286JP is a 40 hp, 3600 rpm, 3-phase, 230/460v, 286jp frame, tefc close-coupled pump motor for close-coupled centrifugal pumps. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number PEWWE40-36-286JP
Horsepower (HP) 40
Speed (RPM) 3600
Phase Three-Phase
Voltage 230/460
Frequency 60/50 HZ*
NEMA Frame 286JP
Enclosure TEFC
Service Factor 1.15
Full-Load Efficiency (%) 92.4
Full-Load Amps 45.5
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP55
Weight (lbs) 419
Warranty Three Year

Applications

  • Close-coupled centrifugal pumps
  • Booster, transfer, and circulation pumps
  • Irrigation and water-treatment skids
  • OEM pump packages

Documentation & Downloads

Frequently Asked Questions

What is the PEWWE40-36-286JP used for?

The PEWWE40-36-286JP is a 40 hp, 3600 rpm, 3-phase, 230/460v, 286jp frame, tefc close-coupled pump motor used for close-coupled centrifugal pumps and similar loads.

What frame is the PEWWE40-36-286JP?

The PEWWE40-36-286JP uses a NEMA 286JP frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the PEWWE40-36-286JP run on?

The PEWWE40-36-286JP is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.

How fast does the PEWWE40-36-286JP ship?

Most in-stock units of the PEWWE40-36-286JP ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
