Description

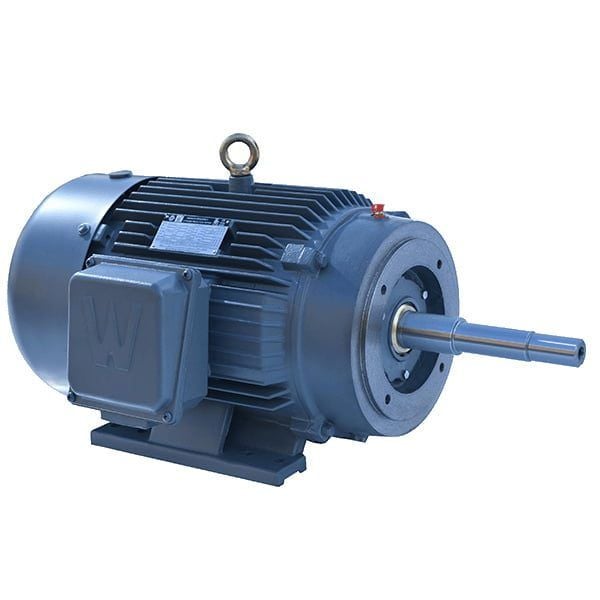

PEWWE40-36-324JP — Close-coupled Pump Motor
The PEWWE40-36-324JP is a 40 hp, 3600 rpm, 3-phase, 230/460v, 324jp frame, tefc close-coupled pump motor for close-coupled centrifugal pumps. TEFC enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | PEWWE40-36-324JP |
| Horsepower (HP) | 40 |
| Speed (RPM) | 3600 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 324JP |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 92.4 |
| Full-Load Amps | 46.1 |
| Insulation Class | Class F |
| Mounting | C-Face with Feet |
| Ingress Protection | IP55 |
| Warranty | Three Year |
Applications
- Close-coupled centrifugal pumps
- Booster, transfer, and circulation pumps
- Irrigation and water-treatment skids
- OEM pump packages
Documentation & Downloads
Frequently Asked Questions
What is the PEWWE40-36-324JP used for?
The PEWWE40-36-324JP is a 40 hp, 3600 rpm, 3-phase, 230/460v, 324jp frame, tefc close-coupled pump motor used for close-coupled centrifugal pumps and similar loads.
What frame is the PEWWE40-36-324JP?
The PEWWE40-36-324JP uses a NEMA 324JP frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the PEWWE40-36-324JP run on?
The PEWWE40-36-324JP is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
How fast does the PEWWE40-36-324JP ship?
Most in-stock units of the PEWWE40-36-324JP ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
