PEWWE50-18-326JP — Close-coupled Pump Motor


Price:
$ 4,300.53

Description

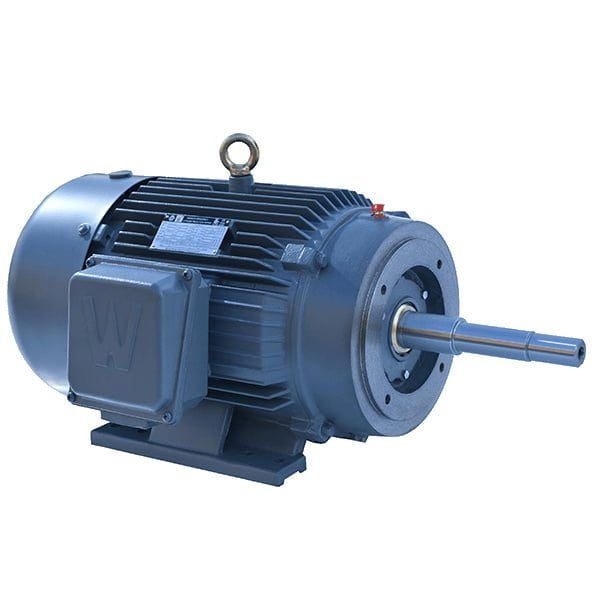

PEWWE50-18-326JP — Close-coupled Pump Motor

The PEWWE50-18-326JP is a 50 hp, 1800 rpm, 3-phase, 230/460v, 326jp frame, tefc close-coupled pump motor for close-coupled centrifugal pumps. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number PEWWE50-18-326JP
Horsepower (HP) 50
Speed (RPM) 1800
Phase Three-Phase
Voltage 230/460
Frequency 60/50 HZ*
NEMA Frame 326JP
Enclosure TEFC
Service Factor 1.15
Full-Load Efficiency (%) 94.5
Full-Load Amps 57.6
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP55
Weight (lbs) 578
Warranty Three Year

Applications

  • Close-coupled centrifugal pumps
  • Booster, transfer, and circulation pumps
  • Irrigation and water-treatment skids
  • OEM pump packages

Documentation & Downloads

Frequently Asked Questions

What is the PEWWE50-18-326JP used for?

The PEWWE50-18-326JP is a 50 hp, 1800 rpm, 3-phase, 230/460v, 326jp frame, tefc close-coupled pump motor used for close-coupled centrifugal pumps and similar loads.

What frame is the PEWWE50-18-326JP?

The PEWWE50-18-326JP uses a NEMA 326JP frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the PEWWE50-18-326JP run on?

The PEWWE50-18-326JP is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.

How fast does the PEWWE50-18-326JP ship?

Most in-stock units of the PEWWE50-18-326JP ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on PEWWE50-18-326JP?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
