Description

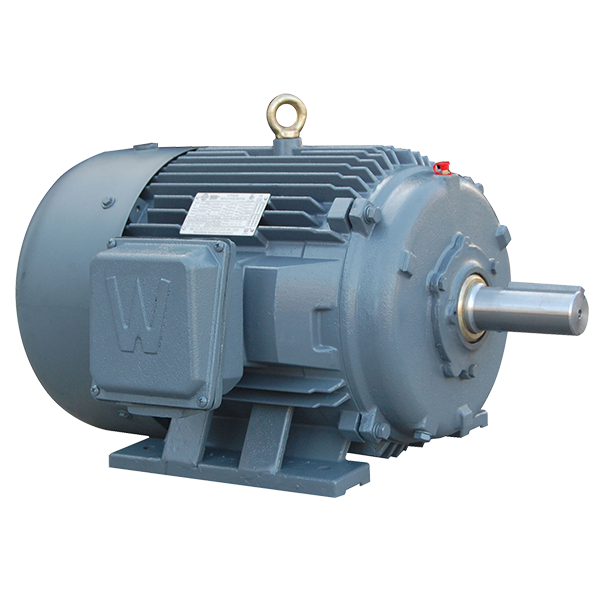

PEWWE60-36-575-364TS — Premium Efficient Motor
The PEWWE60-36-575-364TS is a 60 hp, 3600 rpm, 3-phase, 575v, 364ts frame, tefc premium efficient motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | PEWWE60-36-575-364TS |
| Horsepower (HP) | 60 |
| Speed (RPM) | 3600 |
| Phase | Three-Phase |
| Voltage | 575 |
| Frequency | 60 HZ |
| NEMA Frame | 364TS |
| Enclosure | TEFC |
| Service Factor | 1.25 |
| Full-Load Efficiency (%) | 93.6 |
| Full-Load Amps | 56.5 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP55 |
| Weight (lbs) | 743 |
| Warranty | Two Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
Frequently Asked Questions
What is the PEWWE60-36-575-364TS used for?
The PEWWE60-36-575-364TS is a 60 hp, 3600 rpm, 3-phase, 575v, 364ts frame, tefc premium efficient motor used for industrial machinery and oem equipment and similar loads.
What frame is the PEWWE60-36-575-364TS?
The PEWWE60-36-575-364TS uses a NEMA 364TS frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the PEWWE60-36-575-364TS run on?
The PEWWE60-36-575-364TS is rated 575V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the PEWWE60-36-575-364TS ship?
Most in-stock units of the PEWWE60-36-575-364TS ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Need a quote on PEWWE60-36-575-364TS?
Most in-stock items ship same-day — call to confirm availability and freight.
