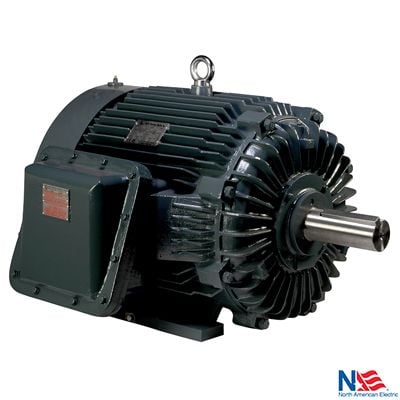

PEXP182T-3-4 - Explosion Proof Motor
The PEXP182T-3-4 is a 3 hp, 1800 rpm, 3-phase, 208-230/460v, 182t frame, tefc explosion proof motor for hazardous and classified locations. TEFC enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | PEXP182T-3-4 |
| Horsepower (HP) | 3 |
| Speed (RPM) | 1800 |
| Phase | Three-Phase |
| Voltage | 208-230/460 |
| Frequency | 60 HZ |
| NEMA Frame | 182T |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP55 |
| Warranty | Two Year |
Applications
- Hazardous and classified locations
- Oil, gas, and chemical processing
- Grain handling and dust environments
- Class I/II Division 1 applications
Documentation & Downloads
Frequently Asked Questions
What is the PEXP182T-3-4 used for?
The PEXP182T-3-4 is a 3 hp, 1800 rpm, 3-phase, 208-230/460v, 182t frame, tefc explosion proof motor used for hazardous and classified locations and similar loads.
What frame is the PEXP182T-3-4?
The PEXP182T-3-4 uses a NEMA 182T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the PEXP182T-3-4 run on?
The PEXP182T-3-4 is rated 208-230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the PEXP182T-3-4 ship?
Most in-stock units of the PEXP182T-3-4 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Helpful guides: ODP vs TEFC enclosure guide · How to read a motor nameplate
