PEXP324TC-25-6 — Explosion Proof Motor


Price:
$ 4,485.72

Description

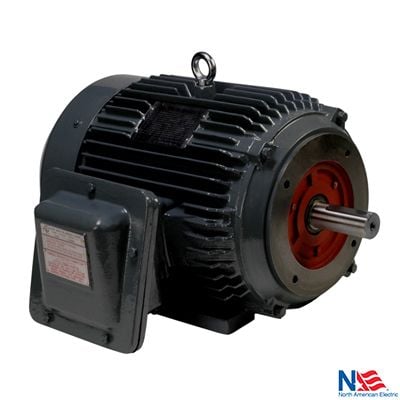

PEXP324TC-25-6 — Explosion Proof Motor

The PEXP324TC-25-6 is a 25 hp, 1200 rpm, 3-phase, 208-230/460v, 324tc frame, tefc explosion proof motor for hazardous and classified locations. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number PEXP324TC-25-6
Horsepower (HP) 25
Speed (RPM) 1200
Phase Three-Phase
Voltage 208-230/460
Frequency 60 HZ
NEMA Frame 324TC
Enclosure TEFC
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Warranty Two Year

Applications

  • Hazardous and classified locations
  • Oil, gas, and chemical processing
  • Grain handling and dust environments
  • Class I/II Division 1 applications

Documentation & Downloads

Frequently Asked Questions

What is the PEXP324TC-25-6 used for?

The PEXP324TC-25-6 is a 25 hp, 1200 rpm, 3-phase, 208-230/460v, 324tc frame, tefc explosion proof motor used for hazardous and classified locations and similar loads.

What frame is the PEXP324TC-25-6?

The PEXP324TC-25-6 uses a NEMA 324TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the PEXP324TC-25-6 run on?

The PEXP324TC-25-6 is rated 208-230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the PEXP324TC-25-6 ship?

Most in-stock units of the PEXP324TC-25-6 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on PEXP324TC-25-6?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
