Plategrip 1 1/4CDT - Balance Steel 100 Sets/Bucket


Price:
$ 386.72

Description

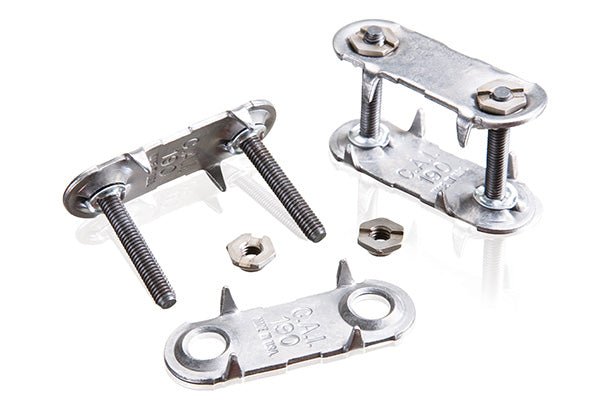

Plategrip 1 1/4CDT is a solid bolt plate belt fastener for belts 3/8" to 1/2" on pulleys 14"+, rated to 150 PIW. The top and bottom plates clamp the belt with high-tensile piloted bolts, and specially formed teeth penetrate the belt carcass without damaging fibers. Teeth overlap the plate edges to provide extra holding power on thin belts, and the patented pre-assembled bottom plate uses a thin metal clinching washer superior to plastic or nylon designs.

What is in the package:

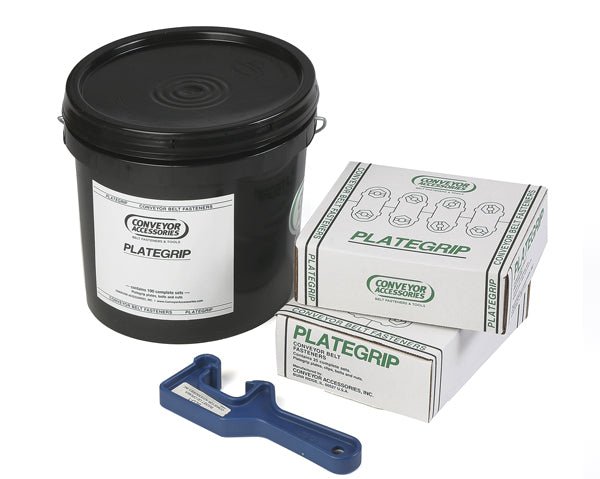

  • 100 matched plate sets in a sturdy bucket
  • Bolts (high-tensile, pre-attached to top plates)
  • Nuts
  • Template nails (for layout marking)
  • Steel clinching washers (pre-assembled into bottom plate)
  • Installation instructions

Creates a strong, sift-free splice with superior holding ability for bulk material handling.

Common applications: sand and gravel plants, crushed stone, aggregate processing, hard rock mining, and cement production where abrasion dominates splice life.

Material: Durgard is a proprietary heat-treated steel with abrasion-resistant characteristics that provides several times the service life of standard steel in abrasive conveying applications. Not recommended for highly corrosive environments.

Flexco cross-reference: Plategrip 1 1/4 is the direct equivalent to Flexco Bolt Solid Plate 1 1/4 at matching specifications.

Manufactured by MATO Corporation (formerly Conveyor Accessories, Inc.). Texas Belting is an authorized MATO distributor shipping from Houston, TX with same-day availability on stocked items. Call 888-203-2358 for sizing help, bulk pricing, or cross-reference questions.
