Plategrip 140B 100/Bag


Price:
$ 68.26

Description

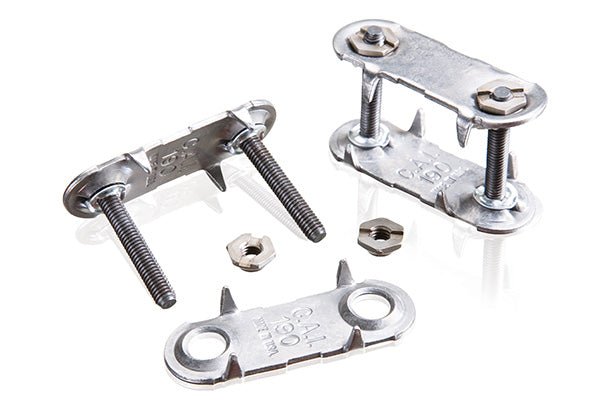

Plategrip 140B is a solid bolt plate belt fastener for belts 3/16" to 7/16" on pulleys 14"+, rated to 225 PIW. The top and bottom plates clamp the belt with high-tensile piloted bolts, and specially formed teeth penetrate the belt carcass without damaging fibers. Teeth overlap the plate edges to provide extra holding power on thin belts, and the patented pre-assembled bottom plate uses a thin metal clinching washer superior to plastic or nylon designs.

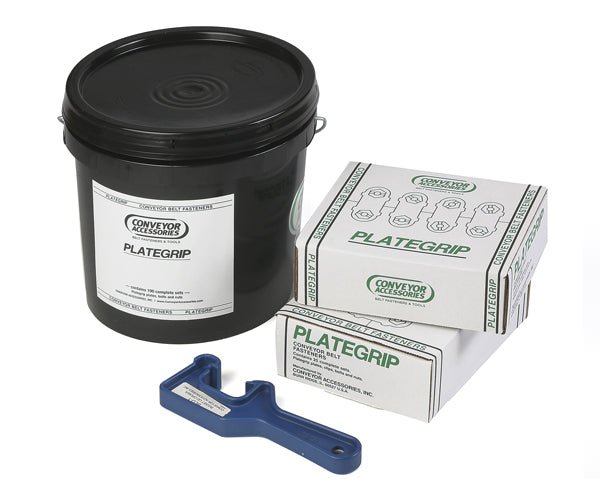

What is in the package:

  • Matched plate set
  • Bolts and nuts
  • Template nails
  • Clinching washers
  • Installation instructions

Creates a strong, sift-free splice with superior holding ability for bulk material handling.

Common applications: coal mining, aggregate and asphalt plants, cement production, grain handling, pulp and paper, and general heavy industrial conveying.

Material: Steel is the most common and economical Plategrip material, suitable for new equipment and replacement applications in dry, non-corrosive environments.

Flexco cross-reference: Plategrip 140 is the direct equivalent to Flexco Bolt Solid Plate 140 at matching specifications.

Manufactured by MATO Corporation (formerly Conveyor Accessories, Inc.). Texas Belting is an authorized MATO distributor shipping from Houston, TX with same-day availability on stocked items. Call 888-203-2358 for sizing help, bulk pricing, or cross-reference questions.
