Plategrip 1ES - All Stainless 25 Sets/Box


Price:
$ 254.66

Description

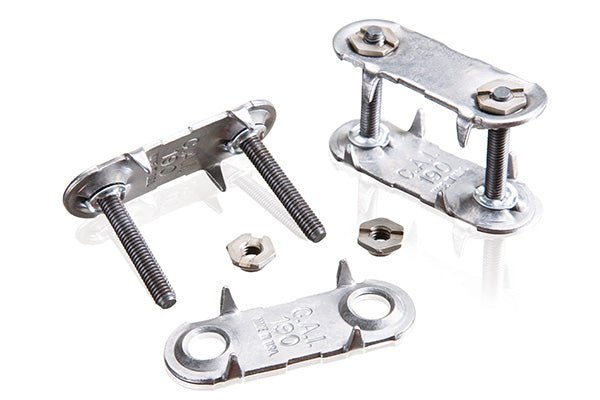

Plategrip 1ES is a solid bolt plate belt fastener for belts 3/16" to 7/16" on pulleys 12"+, rated to 150 PIW. The top and bottom plates clamp the belt with high-tensile piloted bolts, and specially formed teeth penetrate the belt carcass without damaging fibers. Teeth overlap the plate edges to provide extra holding power on thin belts, and the patented pre-assembled bottom plate uses a thin metal clinching washer superior to plastic or nylon designs.

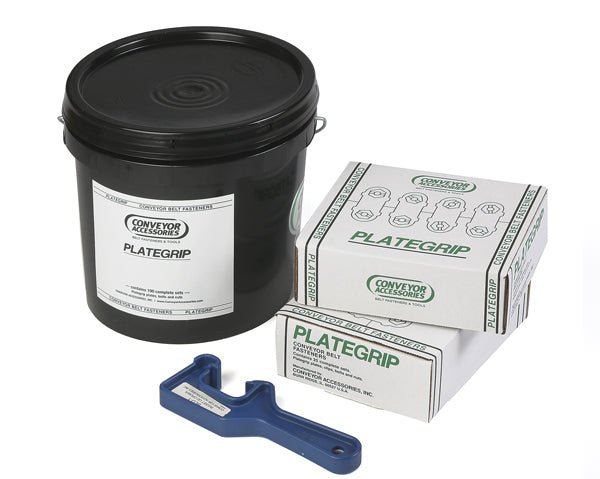

What is in the package:

  • 25 matched plate sets in a sturdy box
  • Bolts (high-tensile, pre-attached to top plates)
  • Nuts
  • Template nails (for layout marking)
  • Steel clinching washers (pre-assembled into bottom plate)
  • Installation instructions

Creates a strong, sift-free splice with superior holding ability for bulk material handling.

Common applications: food processing with wash-down requirements, pharmaceutical and chemical conveyors, and corrosive industrial environments.

Material: Stainless steel provides resistance to abrasion, acids, chemicals, and magnetic attraction, making it suitable for food processing and corrosive environments.

Flexco cross-reference: Plategrip 1 is the direct equivalent to Flexco Bolt Solid Plate 1 at matching specifications.

Manufactured by MATO Corporation (formerly Conveyor Accessories, Inc.). Texas Belting is an authorized MATO distributor shipping from Houston, TX with same-day availability on stocked items. Call 888-203-2358 for sizing help, bulk pricing, or cross-reference questions.
