Description

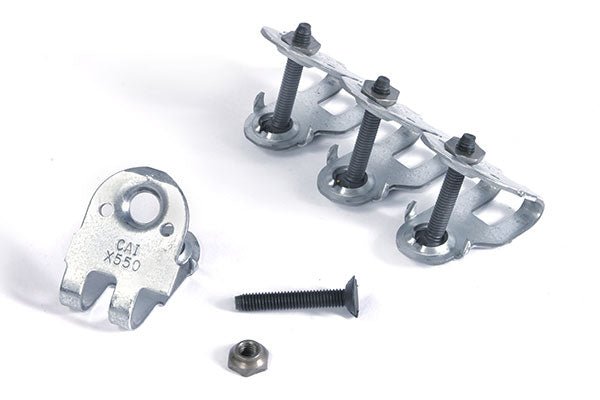

Hinged Plategrip X550-1S is a stainless steel bolt hinged belt fastener for belts 1/4" to 5/8" on pulleys 9" and larger, rated to 300 PIW. The hinged joint separates by removing the hinge pin, allowing belt sections to be added or removed without tools.
What is in the package:
- 50 matched plate sets (top plate + bottom plate per set)
- Bolts and nuts sized to plate, pre-attached to top plate
- 50 hinge pins (one per set)
- Filler tubing (cable threaded through hinge loops, one length per set)
- Installation instructions
This is a bulk pack with no specific belt width. Cut plates to your belt width on-site. Hinge pin and filler tubing cut to length at installation.
Common applications: stainless Hinged Plategrip is specified where corrosion resistance matters alongside the portability of a separable joint. Typical uses include potash and salt mining, fertilizer processing, food handling and wash-down lines, chemical plants, marine environments, and outdoor portable conveyors exposed to weather.
Material: Stainless steel resists corrosion from chlorides, acids, wash-down chemicals, and humid or marine atmospheres. The stainless construction also resists pitting and fastener fatigue in environments that would degrade carbon steel fasteners over weeks or months. Pair with a stainless hinge pin (X375NCS or X550NCS) and stainless retainer washers for a fully corrosion-resistant splice.
Flexco cross-reference: Hinged Plategrip X550 stainless is the direct equivalent to Flexco Bolt Hinged 550 stainless.
Manufactured by MATO Corporation (formerly Conveyor Accessories, Inc.). Texas Belting is an authorized MATO distributor shipping from Houston, TX with same-day availability on stocked items. Call 888-203-2358 for sizing help, bulk pricing, or cross-reference questions.
