Riv-Nail R-6-40 - Steel for 5 Rivet/Plate


Price:
$ 107.80

Description

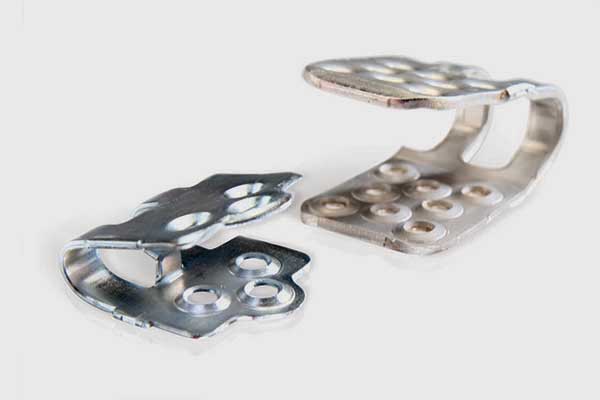

Riv-Nail R-6-40 is a rivet hinged belt fastener for belts 13/32" to 3/4" on pulleys 18"+, rated to 1,000 PIW. Top and bottom plates sandwich each belt end and are secured by a staggered pattern of self-setting Riv-Nails (semi-tubular rivets paired with pilot nails). The compression design does not rely entirely on belt fabric for pull-out resistance, making Riv-Nail the preferred mechanical splice on worn belts and high-strength synthetic carcasses.

What is in the package:

  • Matched set of top and bottom galvanized steel plates sized for 40" belt width
  • Each plate has pre-pierced holes for 6 rivets per plate position
  • Clinching washers (pre-assembled into bottom plate)
  • Installation instructions

Rivets and hinge pin sold separately. Order R-6 size rivets (matching material) and a 1/4" steel cable hinge pin sized to your belt width to complete the splice.

Rivets and hinge pin ordered separately.

Common applications: coal mining, sawmill main belts, aggregate processing, asphalt plants, grain handling, and general heavy industrial conveyors.

Material: Galvanized steel is the standard Riv-Nail material for general industrial conveying in dry and moderate environments.

Flexco cross-reference: Riv-Nail R-6 is the direct equivalent to Flexco SR R6 Rivet Hinged.

Manufactured by MATO Corporation (formerly Conveyor Accessories, Inc.). Texas Belting is an authorized MATO distributor shipping from Houston, TX with same-day availability on stocked items. Call 888-203-2358 for sizing help, bulk pricing, or cross-reference questions.
