Riv-Nail R-2 Complete Splice Kit - Steel, 18" Belt Width with A-Size Rivets and Nylon-Covered Steel Cable Pin, 450 Set Case


Price:
$ 64.75

Description

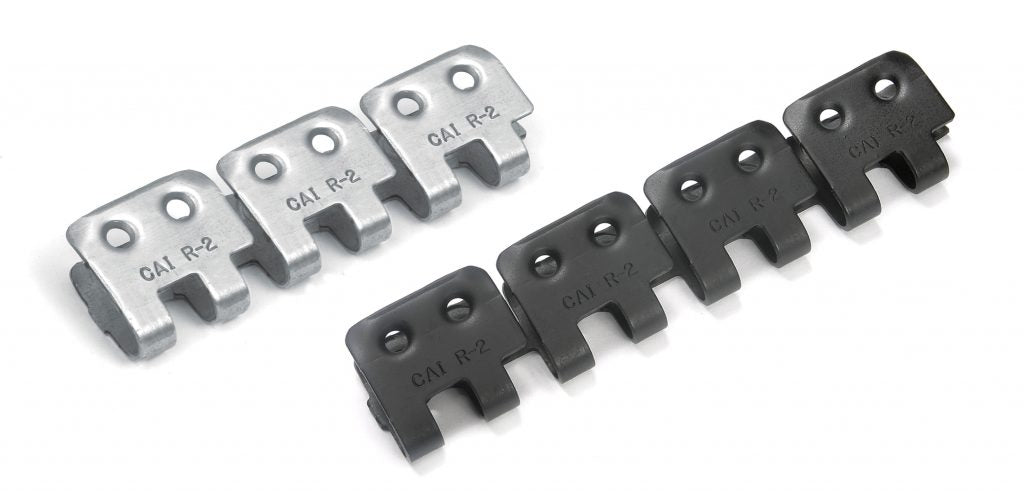

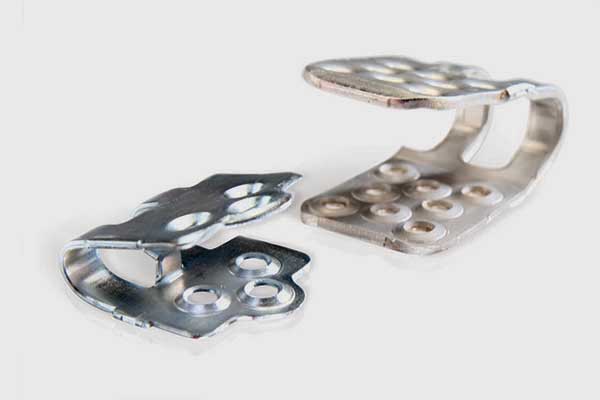

Riv-Nail R-2 Complete Splice Kit is a pre-assembled matched set of rivet hinged belt fastener plates with A-Size rivets and a 18-inch Nylon-Covered Steel Cable hinge pin included in a bulk case of 450 sets. The R-2 fastener is rated to 330 PIW, fits belts 1/8 to 3/8 inch thick, and requires a minimum pulley diameter of 5 inch.

What is in the package:

  • Top and bottom plate sets sized for 18" belt width (steel R-2)
  • Matching #2 rivets with pilot nails (pre-counted to plate count)
  • NC pin (nylon-covered cable) sized to belt width
  • Installation instructions

This is a factory-matched complete kit. Each fastener set includes the top and bottom plates plus the specified rivets and pin, ready to install without separately ordering rivets or hinge pins. Galvanized Steel plate construction. The 9/32 to 11/32 inch rivet fits belts in that thickness range. Each complete splice covers a 18" belt width.

Materials: Steel plates, steel rivets, nylon-covered steel cable hinge pin.

Galvanized steel is the standard economical material for general industrial conveying in dry and moderate environments.

Applications: Used in aggregate, mining, cement, wood products, recycling, and general bulk material handling where abrasion and corrosion are moderate.

Direct Flexco equivalent: Riv-Nail R-2 is the direct equivalent to Flexco SR R2 Rivet Hinged at matching size numbers. Cross-reference charts and technical support available.

Installation: Rivets install with the MATO RNAT manual driver, MRNAT multi-rivet driver, RNAPD air-powered driver, or RNBH-1 battery hammer. Typical installation time is 30 to 60 minutes per splice.

Texas Belting is an authorized MATO distributor shipping from Houston, TX. Same-day shipping on stocked items. Call 888-203-2358 for sizing help or bulk pricing.
