Riv-Nail RS-2-26 - Stainless for 2 Rivet/Plate


Price:
$ 96.27

Description

Riv-Nail RS-2-26 is a rivet hinged belt fastener for medium to heavy-duty belts. Top and bottom plates sandwich each belt end and are secured by a staggered pattern of self-setting Riv-Nails (semi-tubular rivets paired with pilot nails). The compression design does not rely entirely on belt fabric for pull-out resistance, making Riv-Nail the preferred mechanical splice on worn belts and high-strength synthetic carcasses.

What is in the package:

  • Matched set of top and bottom non-magnetic stainless steel plates sized for 26" belt width
  • Each plate has pre-pierced holes for 2 rivets per plate position
  • Clinching washers (pre-assembled into bottom plate)
  • Installation instructions

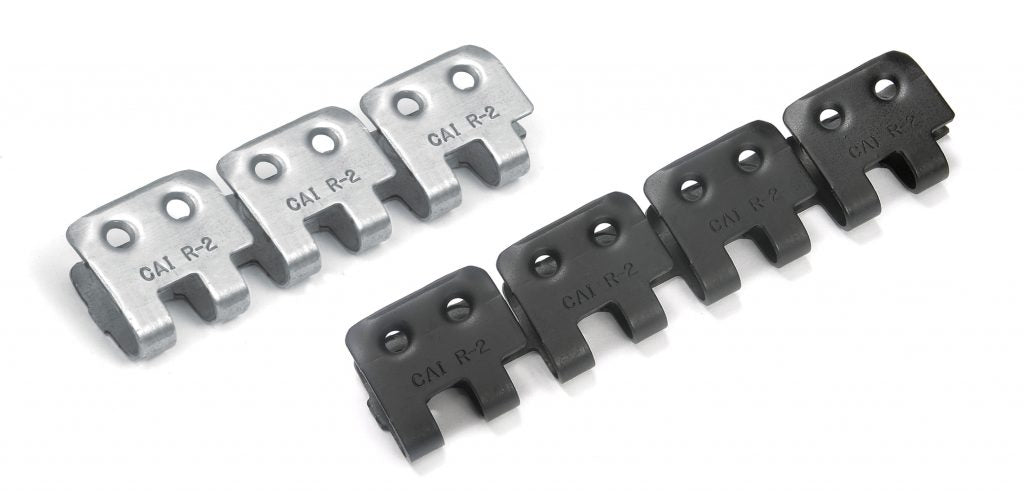

Rivets and hinge pin sold separately. Order R-2 size rivets (matching material) and a 1/4" stainless cable hinge pin sized to your belt width to complete the splice.

Rivets and hinge pin ordered separately.

Common applications: wash-down, corrosive environments, food processing, and metal-detectable lines.

Material: Non-magnetic 430 stainless is used for metal-detectable food lines and mildly corrosive environments.

Flexco cross-reference: Riv-Nail is the direct equivalent to Flexco SR Rivet Hinged.

Manufactured by MATO Corporation (formerly Conveyor Accessories, Inc.). Texas Belting is an authorized MATO distributor shipping from Houston, TX with same-day availability on stocked items. Call 888-203-2358 for sizing help, bulk pricing, or cross-reference questions.
