Description

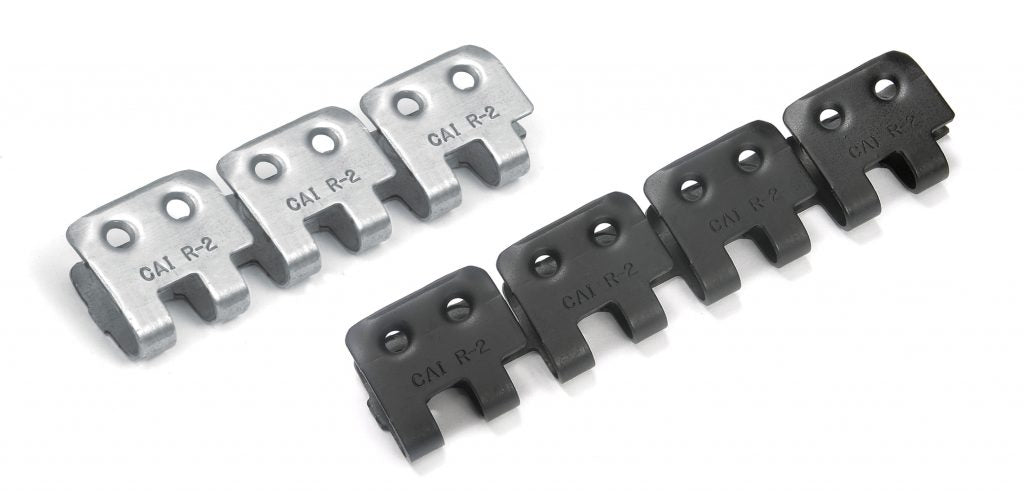

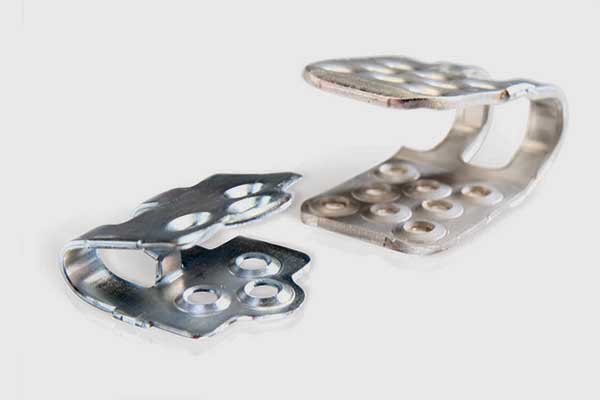

Riv-Nail R-2 Complete Splice Kit is a pre-assembled matched set of rivet hinged belt fastener plates with B-Size Stainless rivets and a 48-inch Nylon-Covered Stainless Cable hinge pin included in a bulk case of 1,200 sets. The R-2 fastener is rated to 330 PIW, fits belts 1/8 to 3/8 inch thick, and requires a minimum pulley diameter of 5 inch.
What is in the package:
- Top and bottom plate sets sized for 48" belt width (steel R-2)
- Matching #2 rivets with pilot nails (pre-counted to plate count)
- NC pin (nylon-covered cable) sized to belt width
- Installation instructions
This is a factory-matched complete kit. Each fastener set includes the top and bottom plates plus the specified rivets and pin, ready to install without separately ordering rivets or hinge pins. Non-Magnetic 430 Stainless plate construction. The 11/32 to 13/32 inch rivet fits belts in that thickness range. Each complete splice covers a 48" belt width.
Materials: Stainless plates, stainless rivets, nylon-covered stainless cable hinge pin.
Non-Magnetic 430 stainless steel plates work on belts passing over magnetic metal detectors, and resist corrosion in food processing and wash-down environments.
Applications: Used in food processing plants with metal detection, pharmaceutical manufacturing, grain handling with non-sparking requirements, and wash-down sanitary lines.
Direct Flexco equivalent: Riv-Nail R-2 is the direct equivalent to Flexco SR R2 Rivet Hinged at matching size numbers. Cross-reference charts and technical support available.
Installation: Rivets install with the MATO RNAT manual driver, MRNAT multi-rivet driver, RNAPD air-powered driver, or RNBH-1 battery hammer. Typical installation time is 30 to 60 minutes per splice.
Texas Belting is an authorized MATO distributor shipping from Houston, TX. Same-day shipping on stocked items. Call 888-203-2358 for sizing help or bulk pricing.
