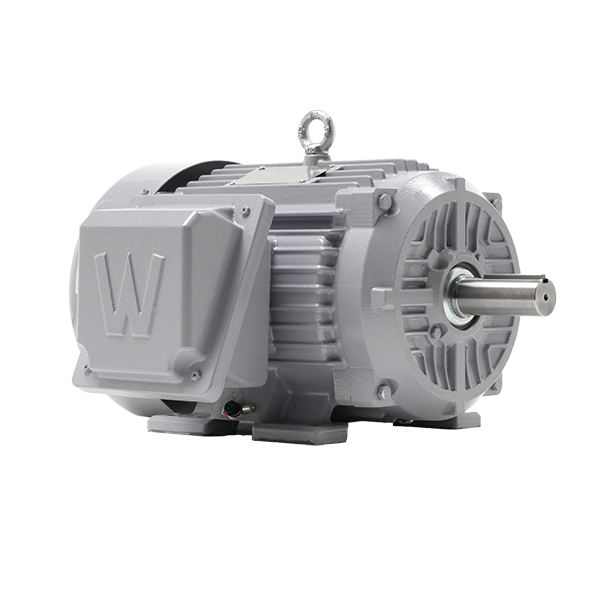

SD10-12-256T — Severe Duty, Premium Efficient Motor


Price:
$ 4,771.62

Description

SD10-12-256T — Severe Duty, Premium Efficient Motor

The SD10-12-256T is a 10 hp, 1200 rpm, 3-phase, 230/460v, 256t frame, tefc severe duty, premium efficient motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number SD10-12-256T
Horsepower (HP) 10
Speed (RPM) 1200
Phase Three-Phase
Voltage 230/460
Frequency 60 HZ
NEMA Frame 256T
Enclosure TEFC
Service Factor 1.15
Full-Load Efficiency (%) 91.0
Full-Load Amps 14.2
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Weight (lbs) 316
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the SD10-12-256T used for?

The SD10-12-256T is a 10 hp, 1200 rpm, 3-phase, 230/460v, 256t frame, tefc severe duty, premium efficient motor used for industrial machinery and oem equipment and similar loads.

What frame is the SD10-12-256T?

The SD10-12-256T uses a NEMA 256T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the SD10-12-256T run on?

The SD10-12-256T is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the SD10-12-256T ship?

Most in-stock units of the SD10-12-256T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
