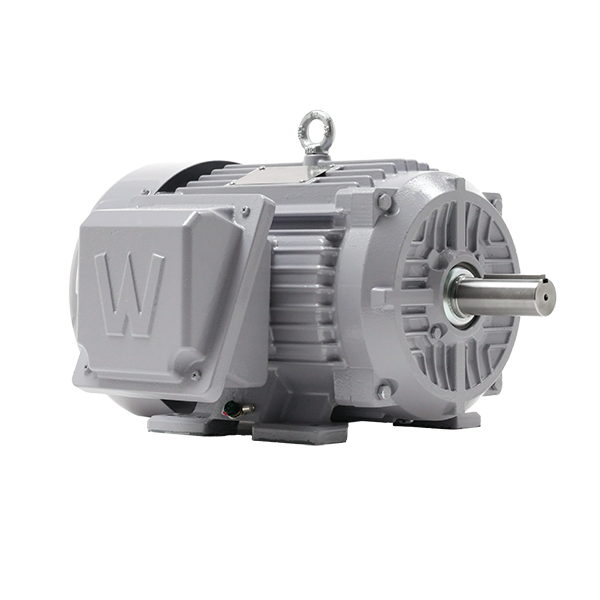

SD15-18-254T — Severe Duty, Premium Efficient Motor


Price:
$ 1,500.50

Description

SD15-18-254T — Severe Duty, Premium Efficient Motor

The SD15-18-254T is a 15 hp, 1800 rpm, 3-phase, 230/460v, 254t frame, tefc severe duty, premium efficient motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number SD15-18-254T
Horsepower (HP) 15
Speed (RPM) 1800
Phase Three-Phase
Voltage 230/460
Frequency 60 HZ
NEMA Frame 254T
Enclosure TEFC
Service Factor 1.15
Full-Load Efficiency (%) 92.4
Full-Load Amps 18.9
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Weight (lbs) 254
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the SD15-18-254T used for?

The SD15-18-254T is a 15 hp, 1800 rpm, 3-phase, 230/460v, 254t frame, tefc severe duty, premium efficient motor used for industrial machinery and oem equipment and similar loads.

What frame is the SD15-18-254T?

The SD15-18-254T uses a NEMA 254T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the SD15-18-254T run on?

The SD15-18-254T is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the SD15-18-254T ship?

Most in-stock units of the SD15-18-254T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on SD15-18-254T?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
