Description

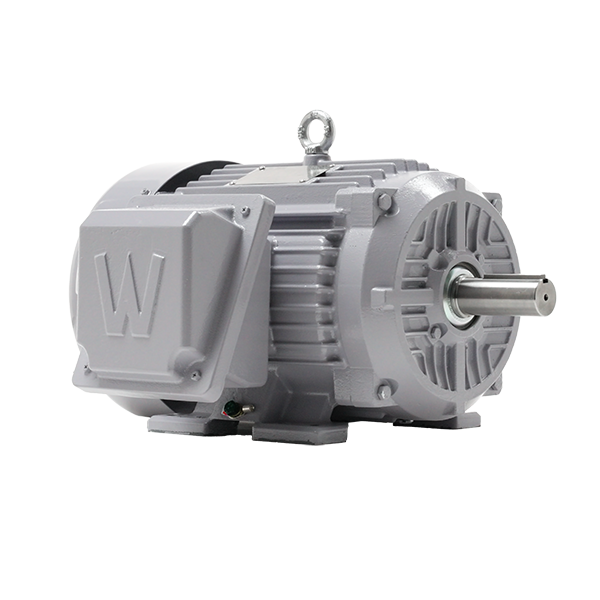

SD60-12-404T — Severe Duty, Premium Efficient Motor
The SD60-12-404T is a 60 hp, 1200 rpm, 3-phase, 230/460v, 404t frame, tefc severe duty, premium efficient motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | SD60-12-404T |
| Horsepower (HP) | 60 |
| Speed (RPM) | 1200 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60 HZ |
| NEMA Frame | 404T |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 94.5 |
| Full-Load Amps | 73.3 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP55 |
| Weight (lbs) | 1125 |
| Warranty | Three Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
Frequently Asked Questions
What is the SD60-12-404T used for?
The SD60-12-404T is a 60 hp, 1200 rpm, 3-phase, 230/460v, 404t frame, tefc severe duty, premium efficient motor used for industrial machinery and oem equipment and similar loads.
What frame is the SD60-12-404T?
The SD60-12-404T uses a NEMA 404T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the SD60-12-404T run on?
The SD60-12-404T is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the SD60-12-404T ship?
Most in-stock units of the SD60-12-404T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
