SD60-36-364TSC — Severe Duty, Premium Efficient Motor


Price:
$ 13,816.94

Description

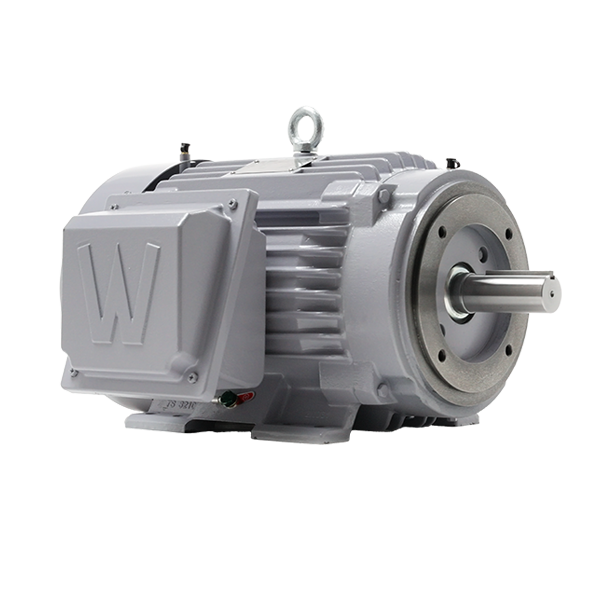

SD60-36-364TSC — Severe Duty, Premium Efficient Motor

The SD60-36-364TSC is a 60 hp, 3600 rpm, 3-phase, 230/460v, 364tsc frame, tefc severe duty, premium efficient motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number SD60-36-364TSC
Horsepower (HP) 60
Speed (RPM) 3600
Phase Three-Phase
Voltage 230/460
Frequency 60 HZ
NEMA Frame 364TSC
Enclosure TEFC
Service Factor 1.15
Full-Load Efficiency (%) 93.6
Full-Load Amps 68.6
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP55
Weight (lbs) 838
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the SD60-36-364TSC used for?

The SD60-36-364TSC is a 60 hp, 3600 rpm, 3-phase, 230/460v, 364tsc frame, tefc severe duty, premium efficient motor used for industrial machinery and oem equipment and similar loads.

What frame is the SD60-36-364TSC?

The SD60-36-364TSC uses a NEMA 364TSC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the SD60-36-364TSC run on?

The SD60-36-364TSC is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the SD60-36-364TSC ship?

Most in-stock units of the SD60-36-364TSC ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
