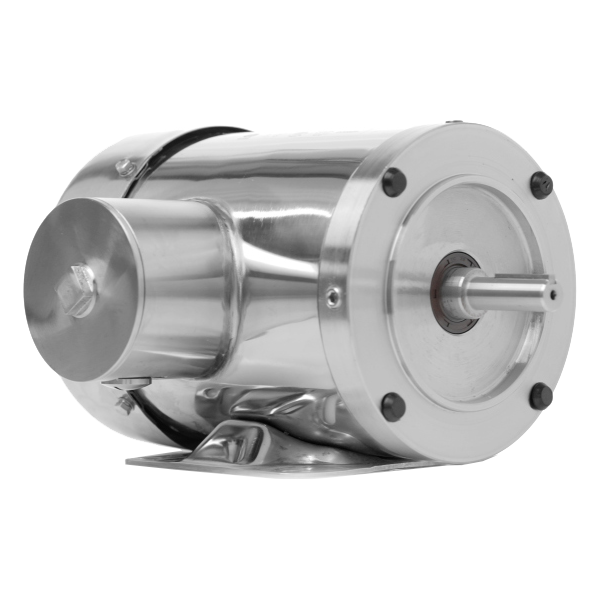

SSPE1-12-145TC — Premium Efficient Motor


Price:
$ 1,629.09

Description

SSPE1-12-145TC — Premium Efficient Motor

The SSPE1-12-145TC is a 1 hp, 1200 rpm, 3-phase, 230/460v, 145tc frame, tefc premium efficient motor for food and beverage processing. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number SSPE1-12-145TC
Horsepower (HP) 1
Speed (RPM) 1200
Phase Three-Phase
Voltage 230/460
Frequency 60 HZ
NEMA Frame 145TC
Enclosure TEFC
Service Factor 1.15
NEMA Design B
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP69K
Weight (lbs) 42
Duty Cycle S1
Warranty Two Year

Applications

  • Food and beverage processing
  • Sanitary and w, high-pressure washdown areas
  • Corrosive and wet environments
  • Pharma and packaging lines

Documentation & Downloads

Frequently Asked Questions

What is the SSPE1-12-145TC used for?

The SSPE1-12-145TC is a 1 hp, 1200 rpm, 3-phase, 230/460v, 145tc frame, tefc premium efficient motor used for food and beverage processing and similar loads.

What frame is the SSPE1-12-145TC?

The SSPE1-12-145TC uses a NEMA 145TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the SSPE1-12-145TC run on?

The SSPE1-12-145TC is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the SSPE1-12-145TC ship?

Most in-stock units of the SSPE1-12-145TC ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on SSPE1-12-145TC?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
