SSPE1-18-143TC — Premium Efficient Motor


Price:
$ 1,420.21

Description

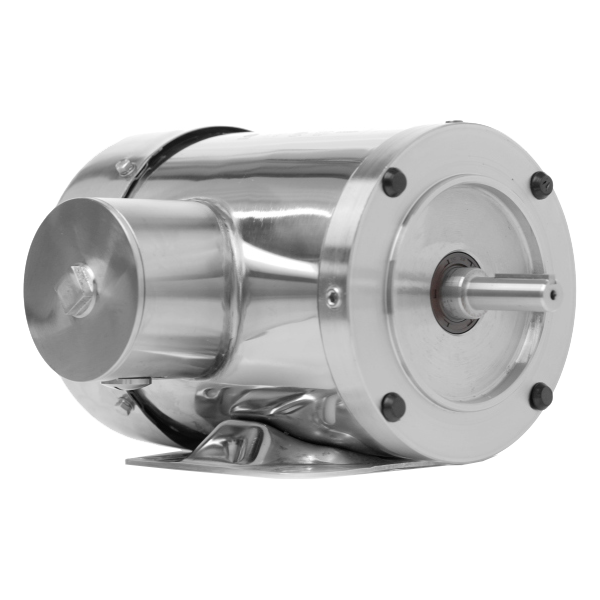

SSPE1-18-143TC — Premium Efficient Motor

The SSPE1-18-143TC is a 1 hp, 1800 rpm, 3-phase, 230/460v, 143tc frame, tefc premium efficient motor for food and beverage processing. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number SSPE1-18-143TC
Horsepower (HP) 1
Speed (RPM) 1800
Phase Three-Phase
Voltage 230/460
Frequency 60 HZ
NEMA Frame 143TC
Enclosure TEFC
Service Factor 1.15
NEMA Design B
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP69K
Weight (lbs) 36
Duty Cycle S1
Warranty Two Year

Applications

  • Food and beverage processing
  • Sanitary and w, high-pressure washdown areas
  • Corrosive and wet environments
  • Pharma and packaging lines

Documentation & Downloads

Frequently Asked Questions

What is the SSPE1-18-143TC used for?

The SSPE1-18-143TC is a 1 hp, 1800 rpm, 3-phase, 230/460v, 143tc frame, tefc premium efficient motor used for food and beverage processing and similar loads.

What frame is the SSPE1-18-143TC?

The SSPE1-18-143TC uses a NEMA 143TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the SSPE1-18-143TC run on?

The SSPE1-18-143TC is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the SSPE1-18-143TC ship?

Most in-stock units of the SSPE1-18-143TC ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
