Description

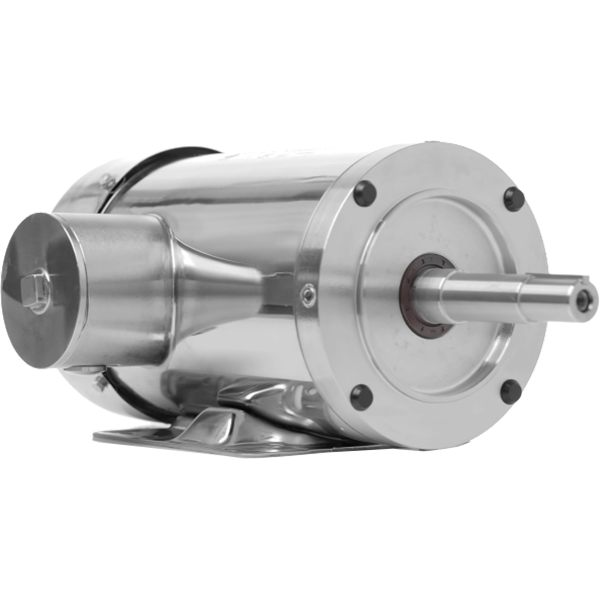

SSPE15-18-254JM — Stainless Steel, Close-coupled Pump Motor
The SSPE15-18-254JM is a 15 hp, 1800 rpm, 3-phase, 230/460v, 254jm frame, tefc stainless steel, close-coupled pump motor for close-coupled centrifugal pumps. TEFC enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | SSPE15-18-254JM |
| Horsepower (HP) | 15 |
| Speed (RPM) | 1800 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60 HZ |
| NEMA Frame | 254JM |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Full-Load Amps | 18.5 |
| Insulation Class | Class F |
| Mounting | C-Face with Feet |
| Ingress Protection | IP69K |
| Weight (lbs) | 370 |
| Warranty | Two Year |
Applications
- Close-coupled centrifugal pumps
- Booster, transfer, and circulation pumps
- Irrigation and water-treatment skids
- OEM pump packages
Documentation & Downloads
- Spec Sheet (PDF)
- Installation & Operation Manual
- 2D CAD (DWG)
- 3D CAD Model
- Series Brochure
- Product Catalog
Frequently Asked Questions
What is the SSPE15-18-254JM used for?
The SSPE15-18-254JM is a 15 hp, 1800 rpm, 3-phase, 230/460v, 254jm frame, tefc stainless steel, close-coupled pump motor used for close-coupled centrifugal pumps and similar loads.
What frame is the SSPE15-18-254JM?
The SSPE15-18-254JM uses a NEMA 254JM frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the SSPE15-18-254JM run on?
The SSPE15-18-254JM is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the SSPE15-18-254JM ship?
Most in-stock units of the SSPE15-18-254JM ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
