Description

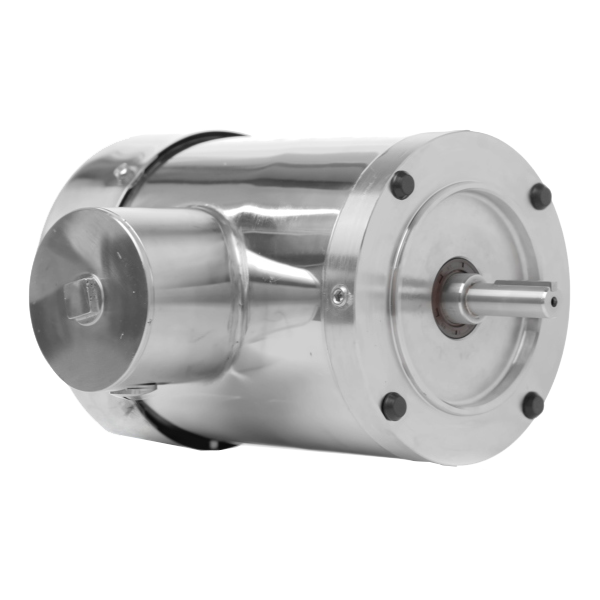

SSPE2-36-56CRD — Premium Efficient Motor
The SSPE2-36-56CRD is a 2 hp, 3600 rpm, 3-phase, 230/460v, 56c frame, tefc premium efficient motor for food and beverage processing. TEFC enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | SSPE2-36-56CRD |
| Horsepower (HP) | 2 |
| Speed (RPM) | 3600 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60 HZ |
| NEMA Frame | 56C |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| NEMA Design | B |
| Insulation Class | Class F |
| Mounting | C-Face Round Body (Footless) |
| Ingress Protection | IP69K |
| Weight (lbs) | 45 |
| Duty Cycle | S1 |
| Warranty | Two Year |
Applications
- Food and beverage processing
- Sanitary and w, high-pressure washdown areas
- Corrosive and wet environments
- Pharma and packaging lines
Documentation & Downloads
Frequently Asked Questions
What is the SSPE2-36-56CRD used for?
The SSPE2-36-56CRD is a 2 hp, 3600 rpm, 3-phase, 230/460v, 56c frame, tefc premium efficient motor used for food and beverage processing and similar loads.
What frame is the SSPE2-36-56CRD?
The SSPE2-36-56CRD uses a NEMA 56C frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the SSPE2-36-56CRD run on?
The SSPE2-36-56CRD is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the SSPE2-36-56CRD ship?
Most in-stock units of the SSPE2-36-56CRD ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
