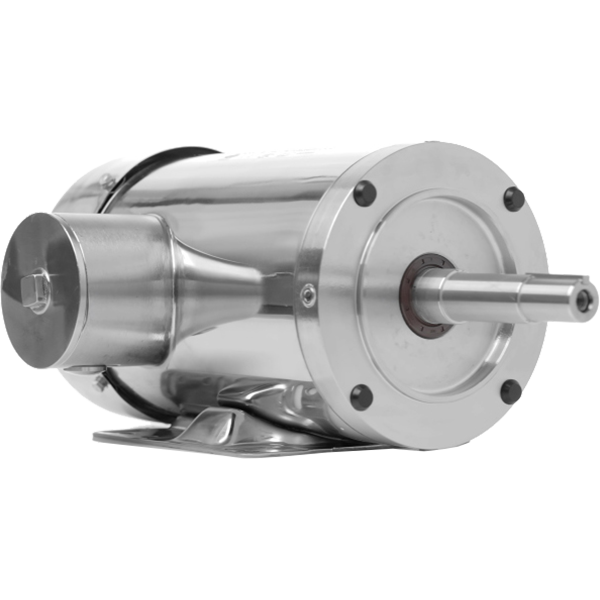

SSPE20-18-256JM — Stainless Steel, Close-coupled Pump Motor


Price:
$ 15,841.02

Description

SSPE20-18-256JM — Stainless Steel, Close-coupled Pump Motor

The SSPE20-18-256JM is a 20 hp, 1800 rpm, 3-phase, 230/460v, 256jm frame, tefc stainless steel, close-coupled pump motor for close-coupled centrifugal pumps. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number SSPE20-18-256JM
Horsepower (HP) 20
Speed (RPM) 1800
Phase Three-Phase
Voltage 230/460
Frequency 60 HZ
NEMA Frame 256JM
Enclosure TEFC
Service Factor 1.15
Full-Load Amps 24.5
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP69K
Weight (lbs) 436
Warranty Two Year

Applications

  • Close-coupled centrifugal pumps
  • Booster, transfer, and circulation pumps
  • Irrigation and water-treatment skids
  • OEM pump packages

Documentation & Downloads

Frequently Asked Questions

What is the SSPE20-18-256JM used for?

The SSPE20-18-256JM is a 20 hp, 1800 rpm, 3-phase, 230/460v, 256jm frame, tefc stainless steel, close-coupled pump motor used for close-coupled centrifugal pumps and similar loads.

What frame is the SSPE20-18-256JM?

The SSPE20-18-256JM uses a NEMA 256JM frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the SSPE20-18-256JM run on?

The SSPE20-18-256JM is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the SSPE20-18-256JM ship?

Most in-stock units of the SSPE20-18-256JM ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Helpful guides: Pump motor selection guide · NEMA frame size chart
